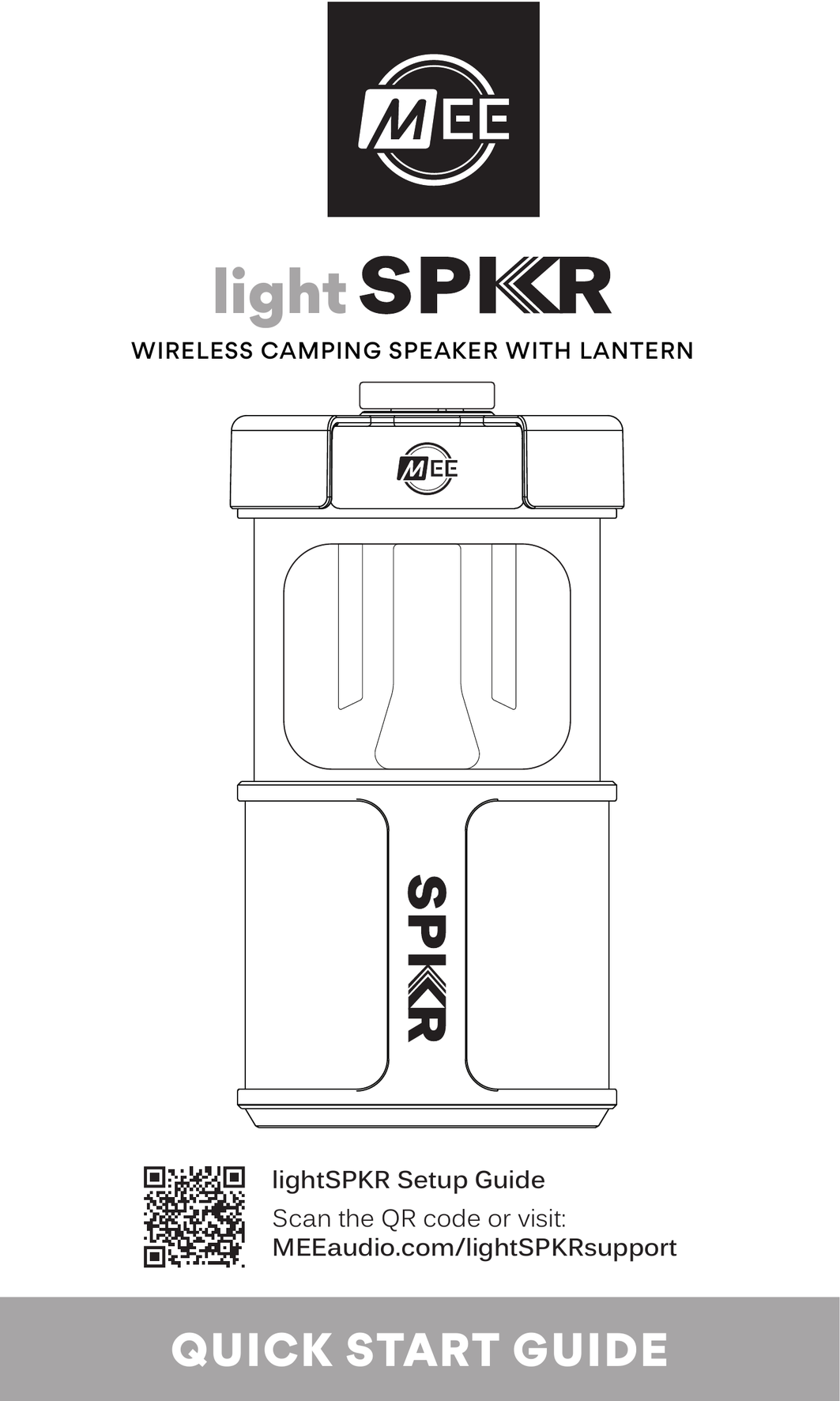

lightSPKR
Wireless Camping Speaker with Lantern
Quick Start Guide

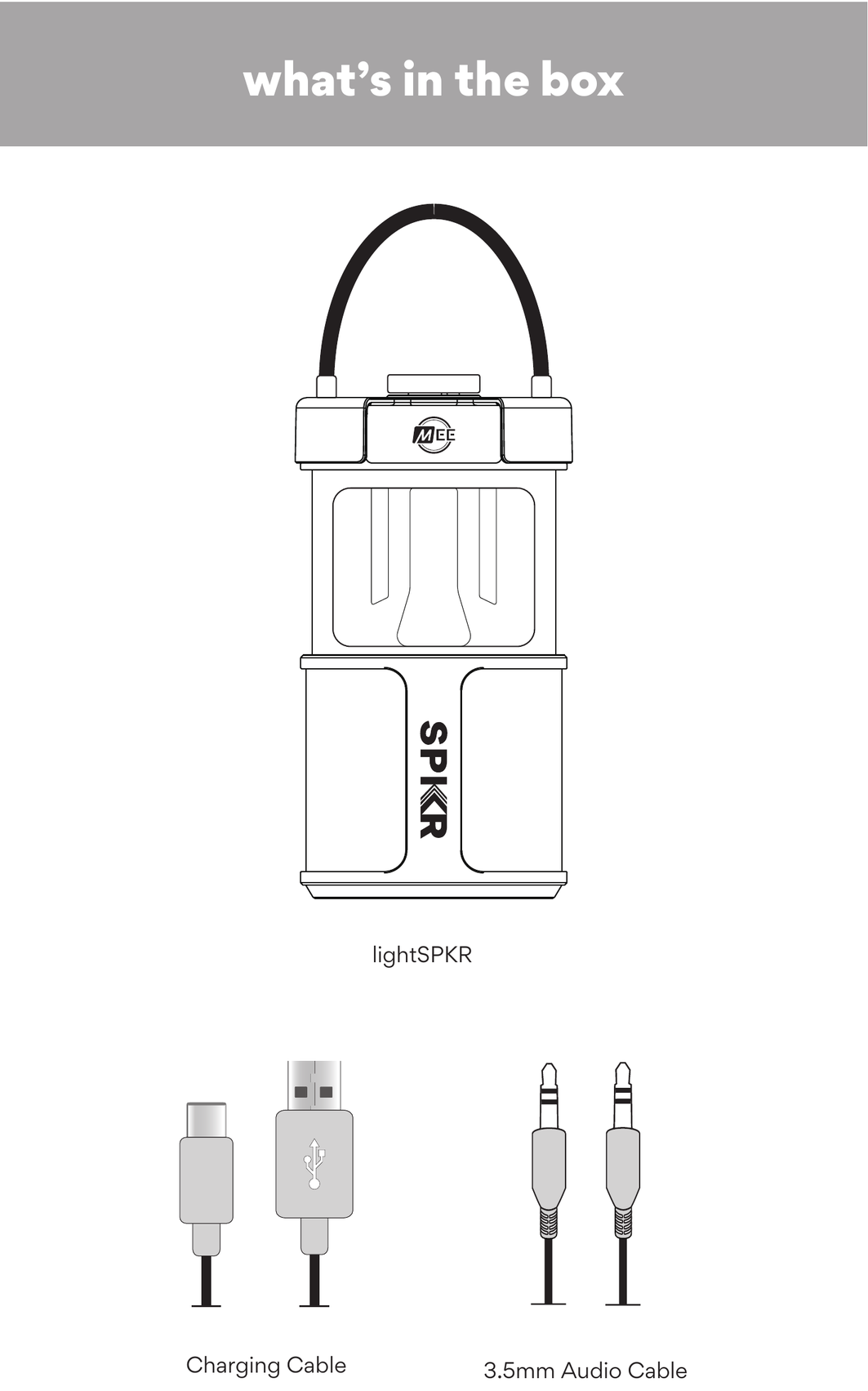

1. What's in the Box
- lightSPKR
- Charging Cable
- 3.5mm Audio Cable

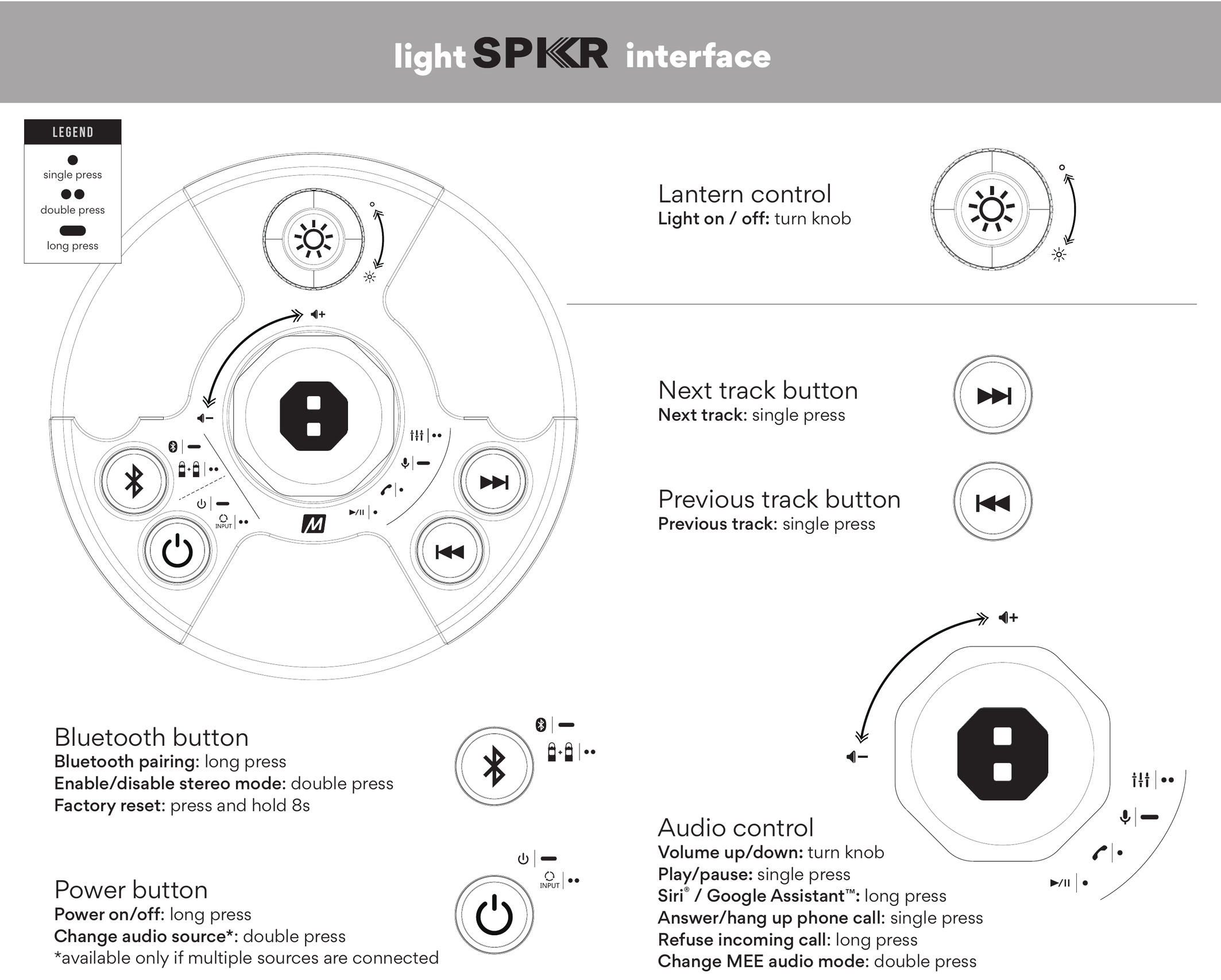

2. Interface
| Control | Action | Function |
|---|---|---|
| Lantern control knob | Turn knob | Light on / off and brightness / color adjustment |
| Audio control knob | Turn knob | Volume up / down |
| Single press | Play / pause; answer / hang up phone call | |
| Long press | Activate Siri® / Google Assistant™; refuse incoming call | |
| Double press | Change MEE audio mode | |
| Double press (when multiple sources connected) | Change audio source | |
| Next track button | Single press | Next track |
| Previous track button | Single press | Previous track |
| Bluetooth button | Long press | Bluetooth pairing |
| Double press | Enable / disable stereo mode | |
| Press & hold 8s | Factory reset | |
| Power button | Long press | Power on / off |
| Double press | Change audio source (when multiple sources connected) |

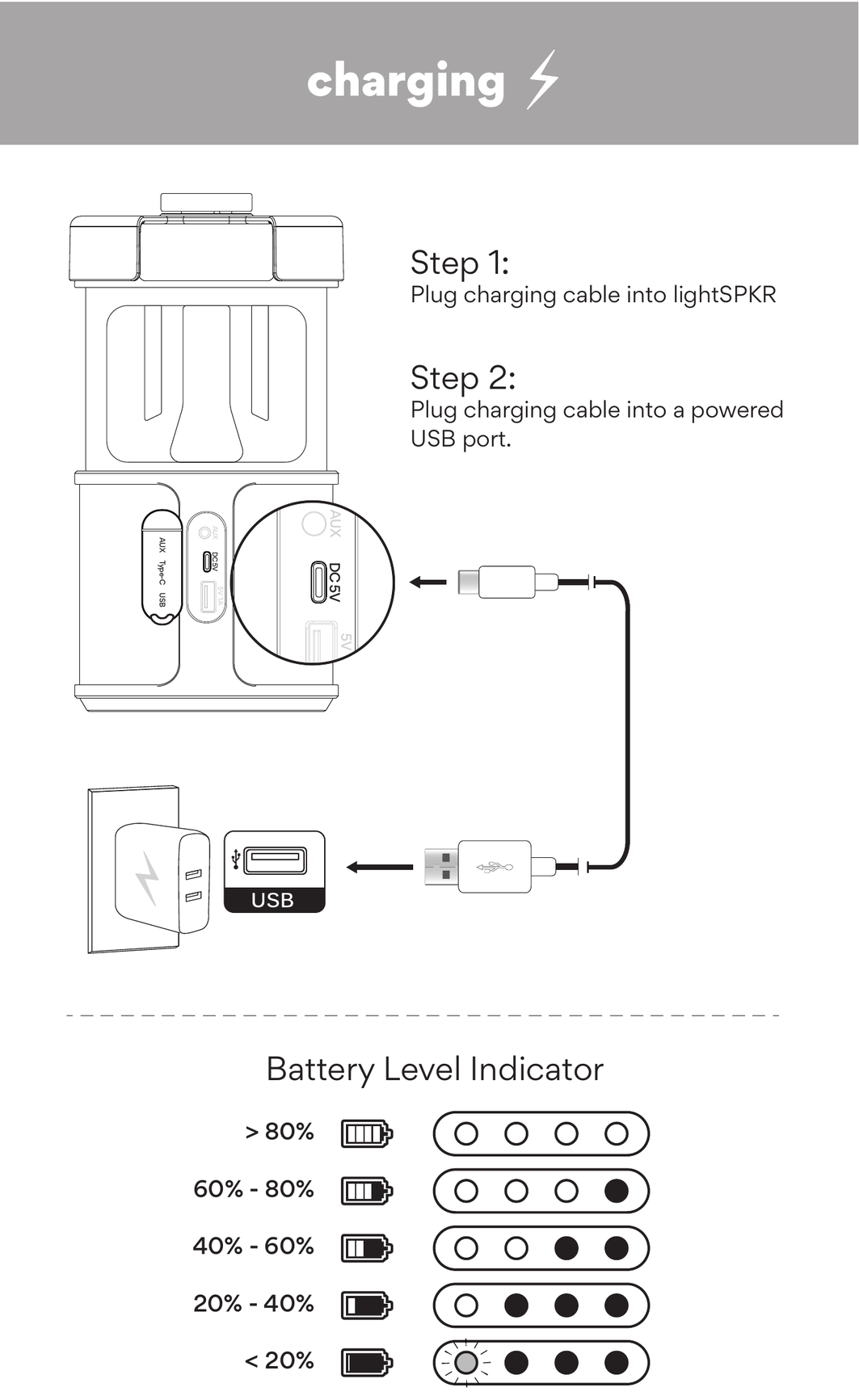

3. Charging
- Plug the charging cable into the lightSPKR (DC 5V port).
- Plug the charging cable into a powered USB port (5V 1A).
Battery Level Indicator
| Battery Level | LED Indicator |
|---|---|
| > 80% | 4 LEDs lit |
| 60% – 80% | 3 LEDs lit, 1 unlit |
| 40% – 60% | 2 LEDs lit, 2 unlit |
| 20% – 40% | 1 LED lit, 3 unlit |
| < 20% | 1 LED flashing, 3 unlit |

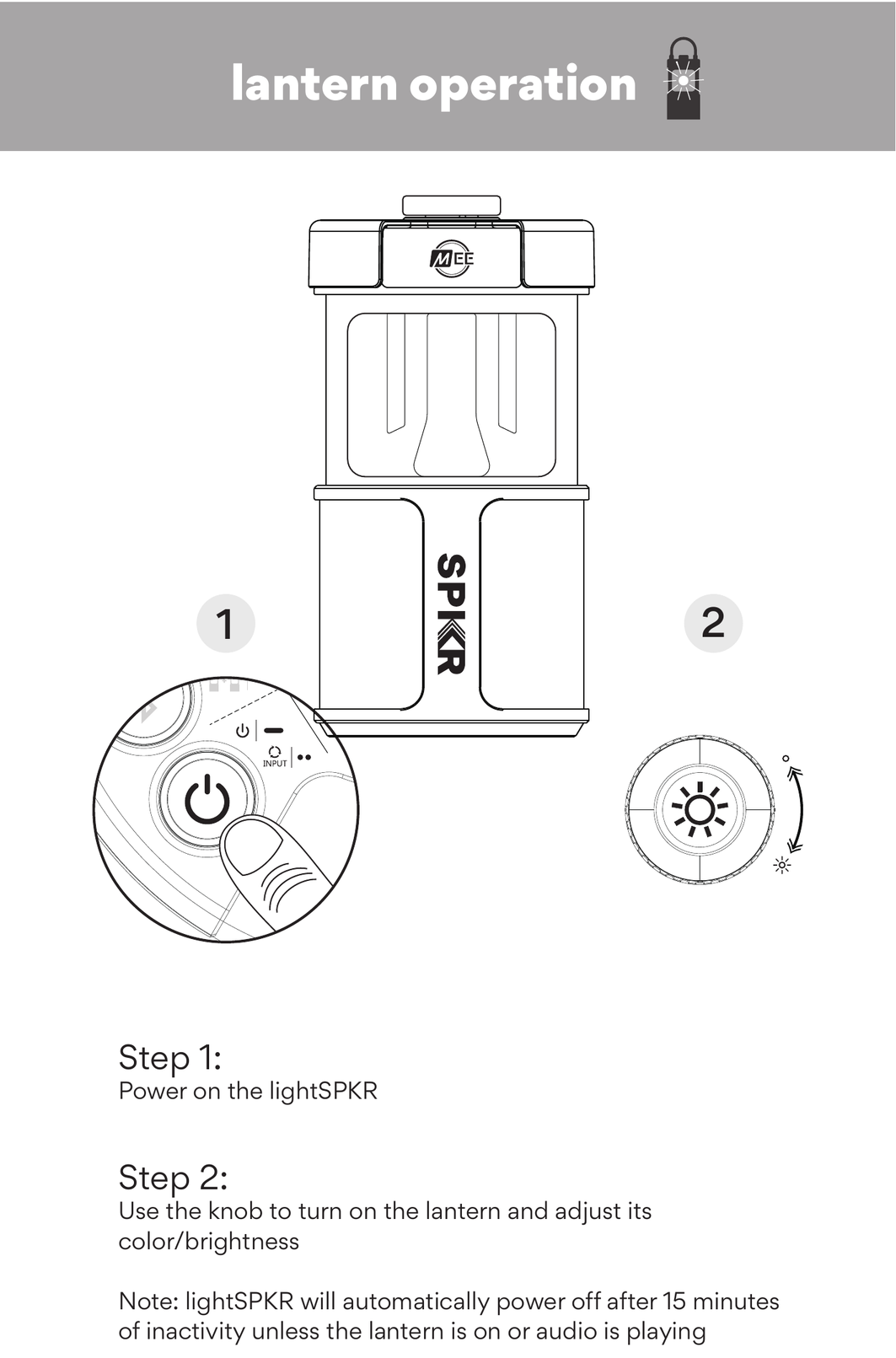

4. Lantern Operation
- Power on the lightSPKR.
- Use the lantern control knob to turn on the lantern and adjust its color and brightness.
Note: The lightSPKR will automatically power off after 15 minutes of inactivity unless the lantern is on or audio is playing.

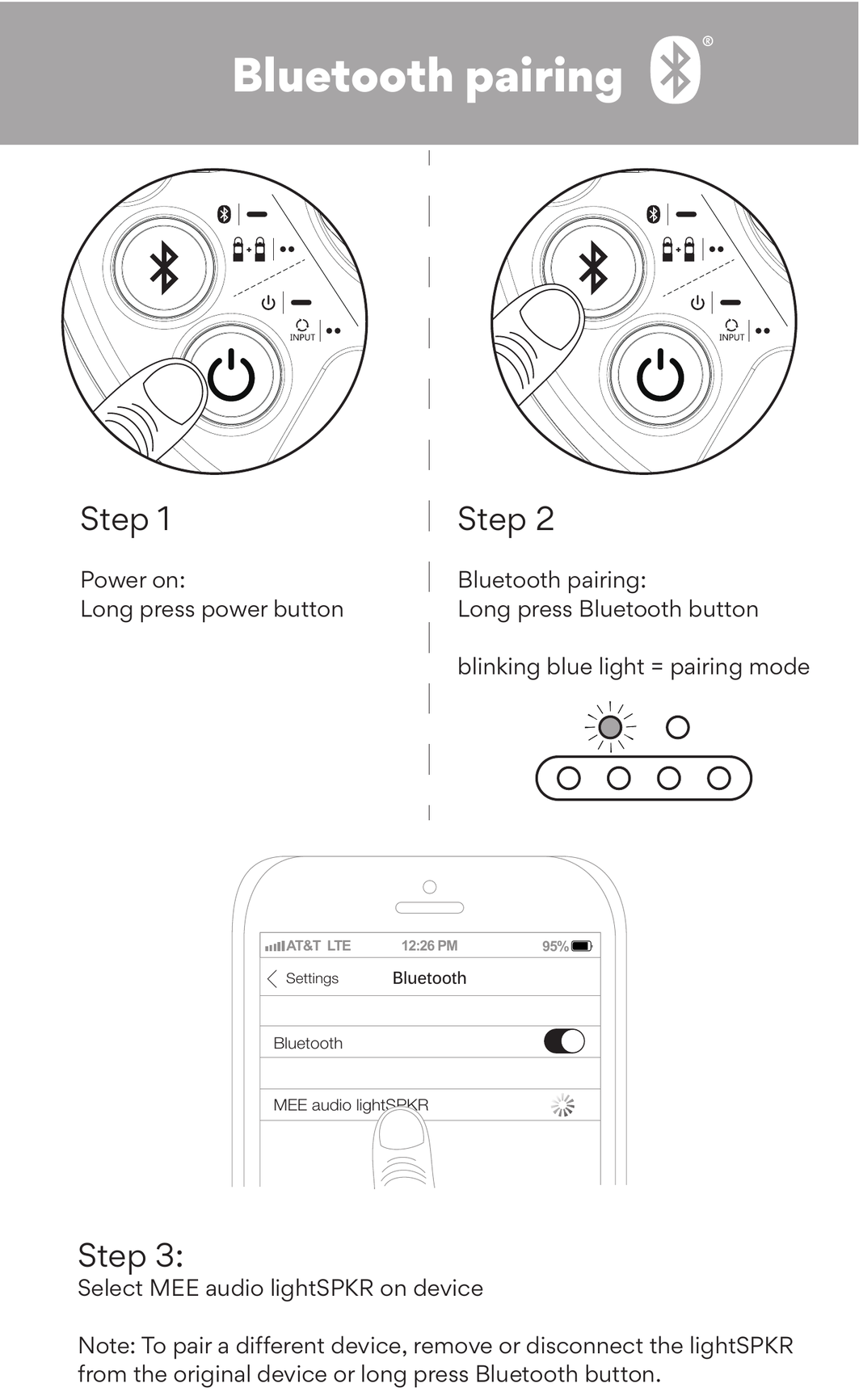

5. Bluetooth Pairing
- Power on the lightSPKR (long press the Power button). The LED will blink blue to indicate pairing mode.
- Long press the Bluetooth button to enter pairing mode.
- On your device, open Bluetooth settings and select MEE audio lightSPKR.
Note: To pair a different device, remove or disconnect the lightSPKR from the original device, or long press the Bluetooth button.

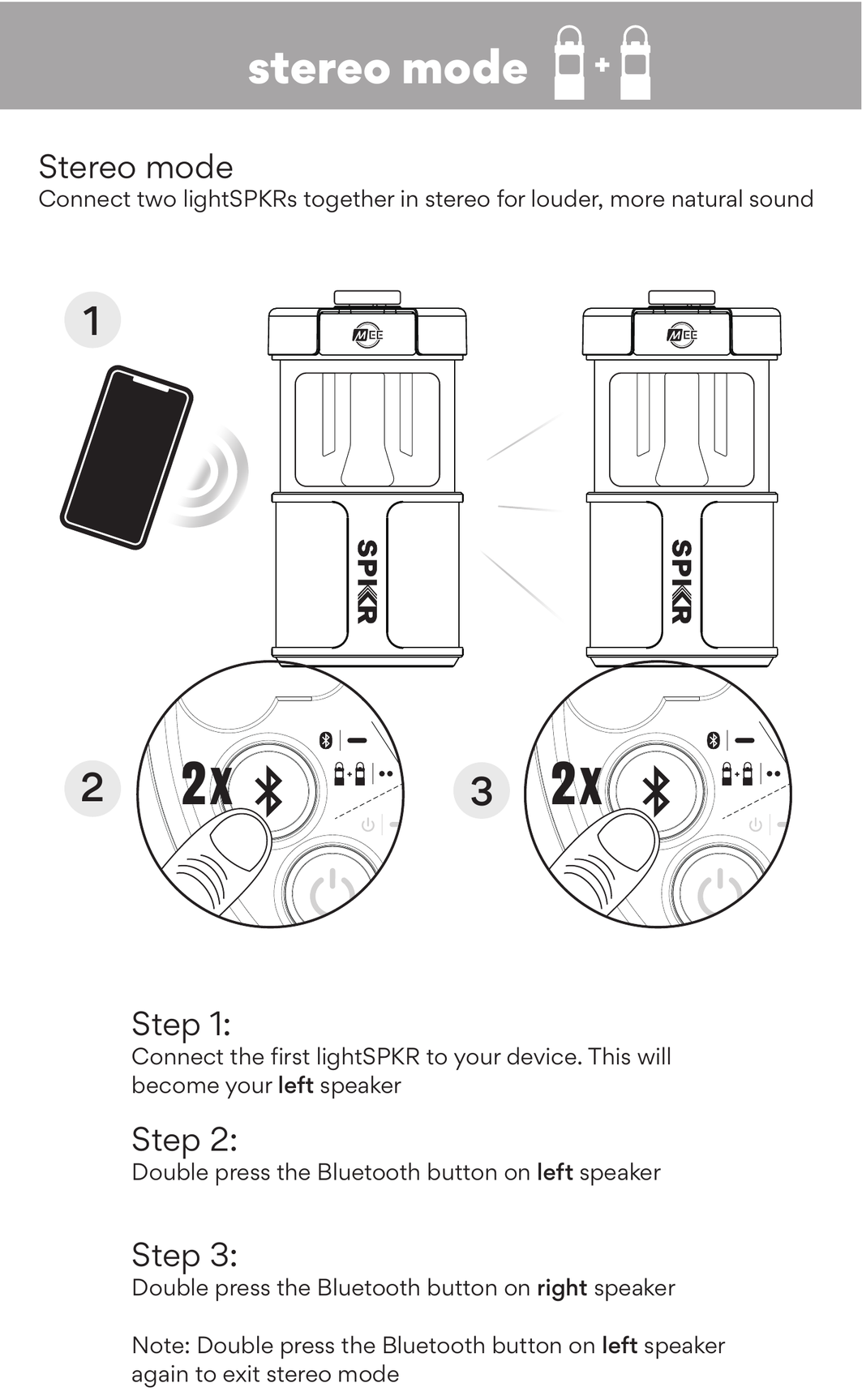

6. Stereo Mode
Connect two lightSPKRs together in stereo for louder, more natural sound.
- Connect the first lightSPKR to your device. This will become your left speaker.
- Double press the Bluetooth button on the left speaker.
- Double press the Bluetooth button on the right speaker.
Note: Double press the Bluetooth button on the left speaker again to exit stereo mode.

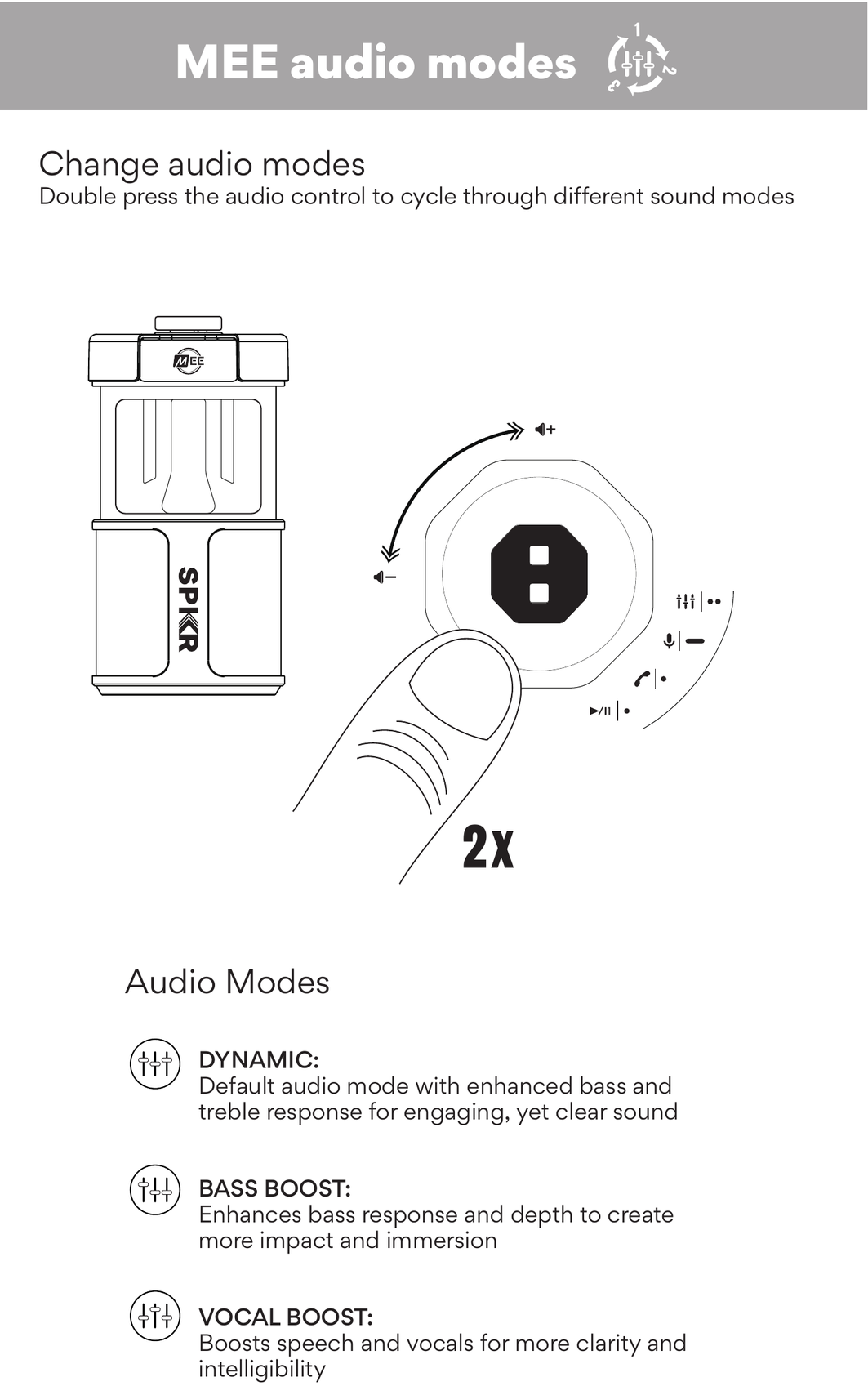

7. MEE Audio Modes
Double press the audio control knob to cycle through different sound modes:
- Dynamic — Default audio mode with enhanced bass and treble response for engaging, yet clear sound.
- Bass Boost — Enhances bass response and depth to create more impact and immersion.
- Vocal Boost — Boosts speech and vocals for more clarity and intelligibility.

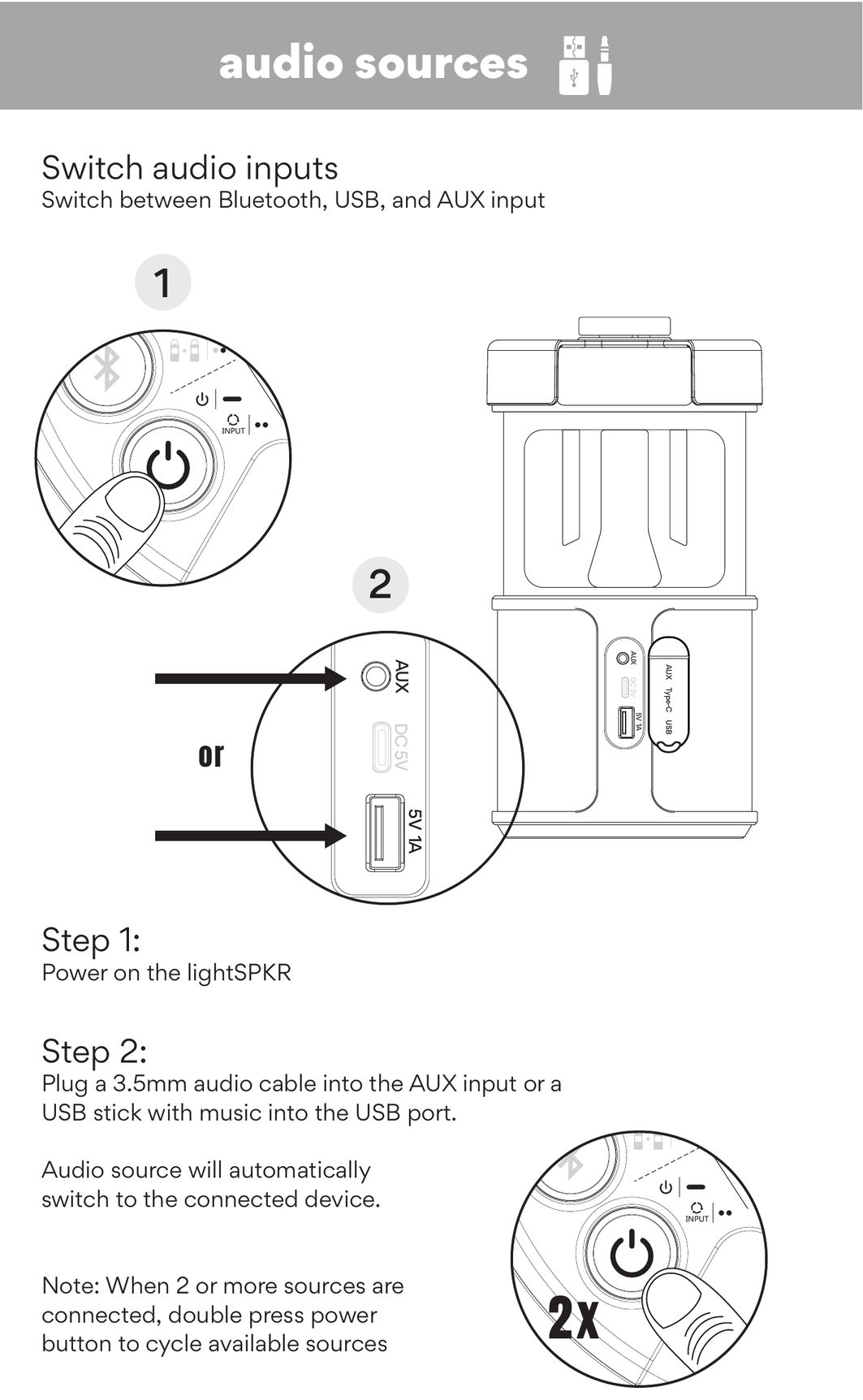

8. Audio Sources
Switch between Bluetooth, USB, and AUX input audio sources:
- Power on the lightSPKR.
- Plug a 3.5mm audio cable into the AUX input, or a USB stick with music into the USB port. The audio source will automatically switch to the connected device.
Note: When 2 or more sources are connected, double press the Power button to cycle through available sources.

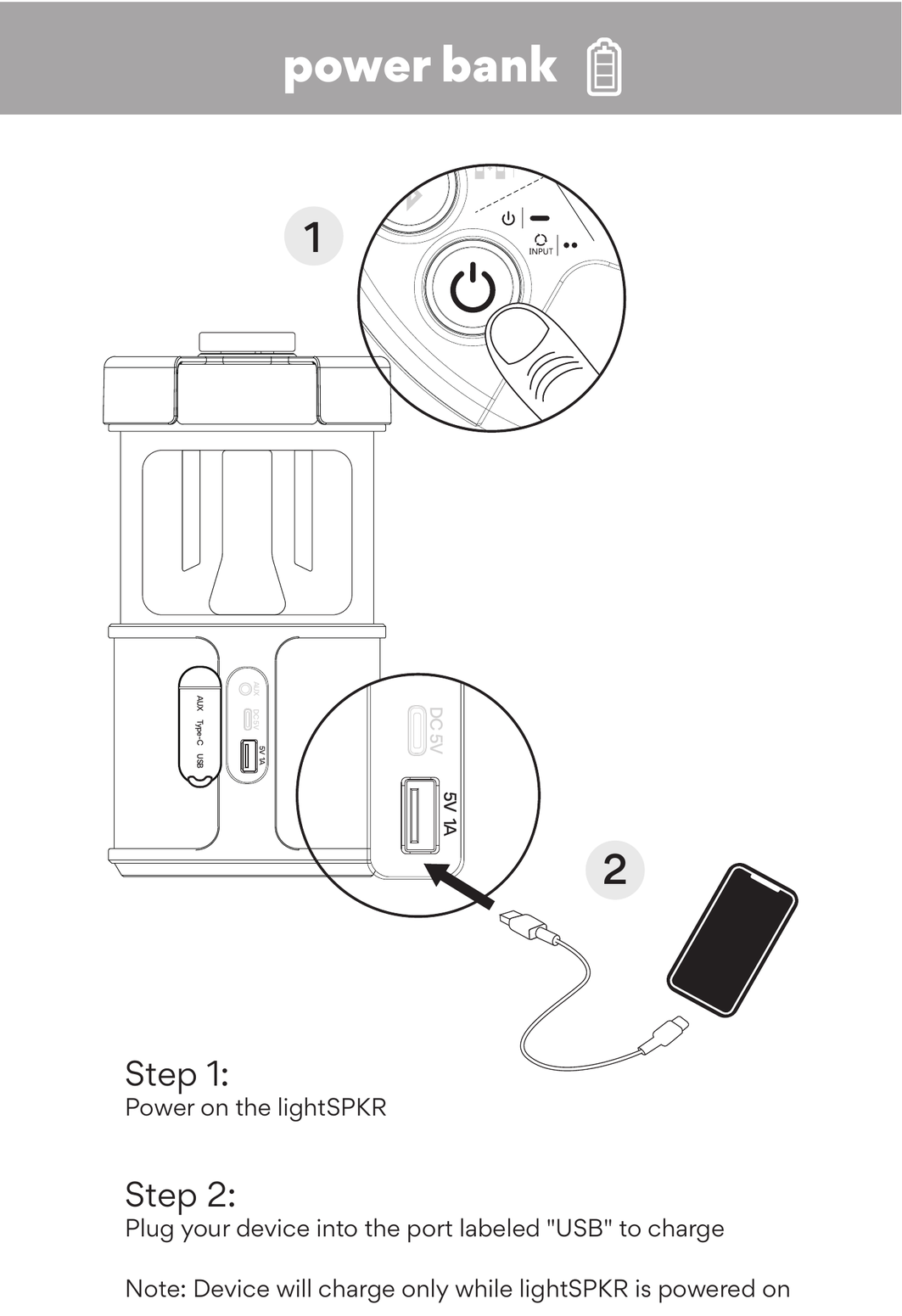

9. Power Bank
- Power on the lightSPKR.
- Plug your device into the port labelled USB to charge.
Note: The device will charge only while the lightSPKR is powered on.

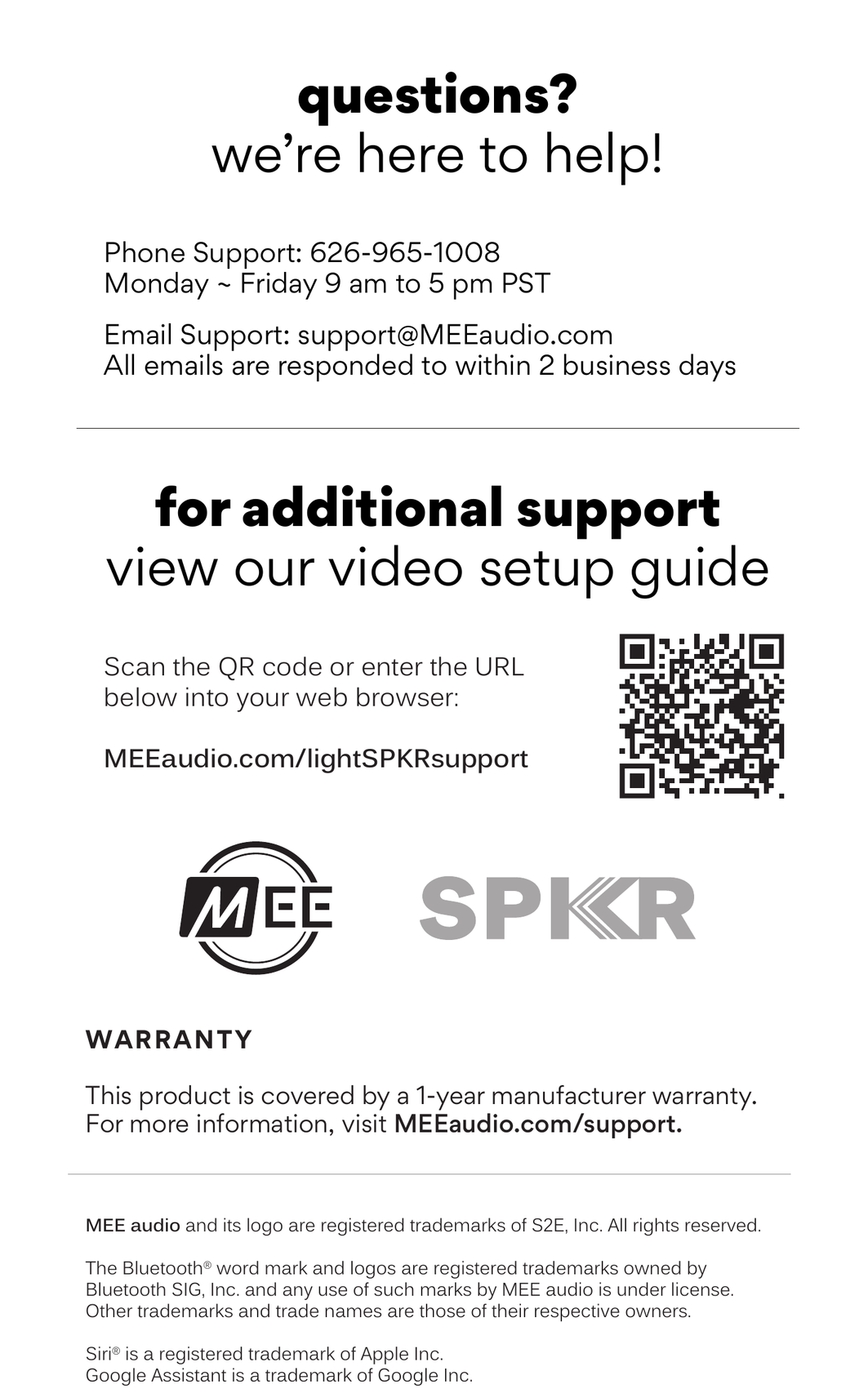

10. Warranty & Support
This product is covered by a 1-year manufacturer warranty. For more information, visit MEEaudio.com/support.
Questions? We're here to help!
Phone Support: 626-965-1008
Monday – Friday, 9:00 am to 5:00 pm PST
Email Support: support@MEEaudio.com
All emails are responded to within 2 business days.
For additional support, view our video setup guide: MEEaudio.com/lightSPKRsupport
