Pinnacle P1

1. Introduction

Thank you for choosing the MEE audio Pinnacle P1 High Fidelity In-Ear Headphones.

The Pinnacle P1 is a high-impedance in-ear headphone designed for audiophiles and music professionals and tuned to deliver the highest levels of resolution and refinement.

While a headphone amplifier is not required to enjoy the Pinnacle P1, the audio hardware in some phones, tablets, and computers is not designed with high-impedance headphones in mind and using a dedicated audio source or amplifier instead can make the difference between a great listening experience and an outstanding one.

The superb sound quality and resolution of high-end headphones such as the Pinnacle P1 are also more pronounced when listening to recordings in CD (or better) quality. To experience the full potential of the P1, we recommend avoiding music that has undergone excessive dynamic range compression or been digitally compressed into low-bitrate formats.

We hope you enjoy the Pinnacle P1 and wish you happy listening!

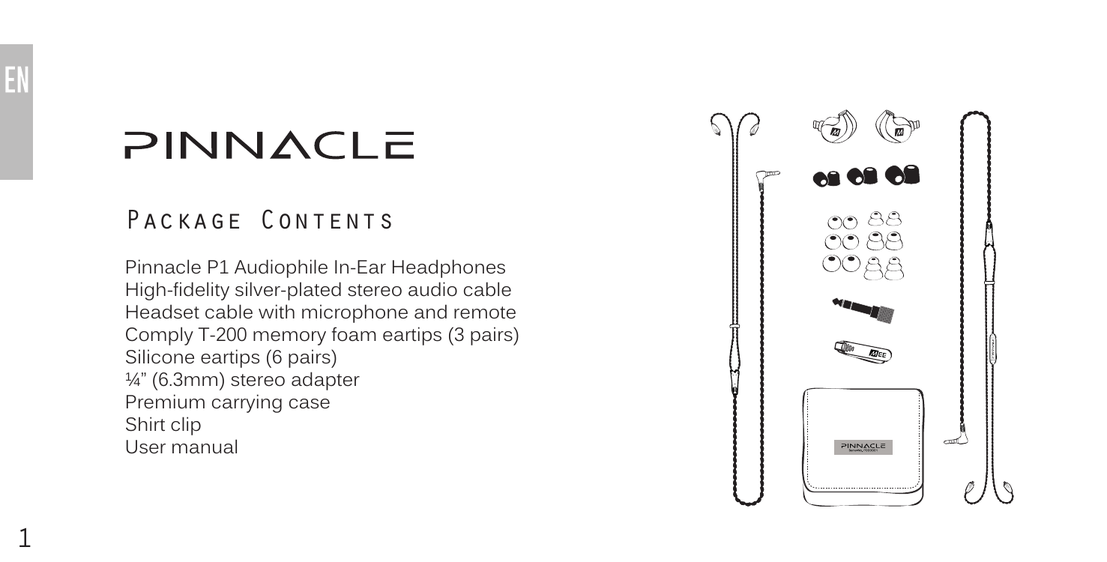

2. Package Contents

Included Items

• Pinnacle P1 Audiophile In-Ear Headphones
• High-fidelity silver-plated stereo audio cable
• Headset cable with microphone and remote
• Comply T-200 memory foam eartips (3 pairs)
• Silicone eartips (6 pairs)
• ¼" (6.3mm) stereo adapter
• Premium carrying case
• Shirt clip
• User manual

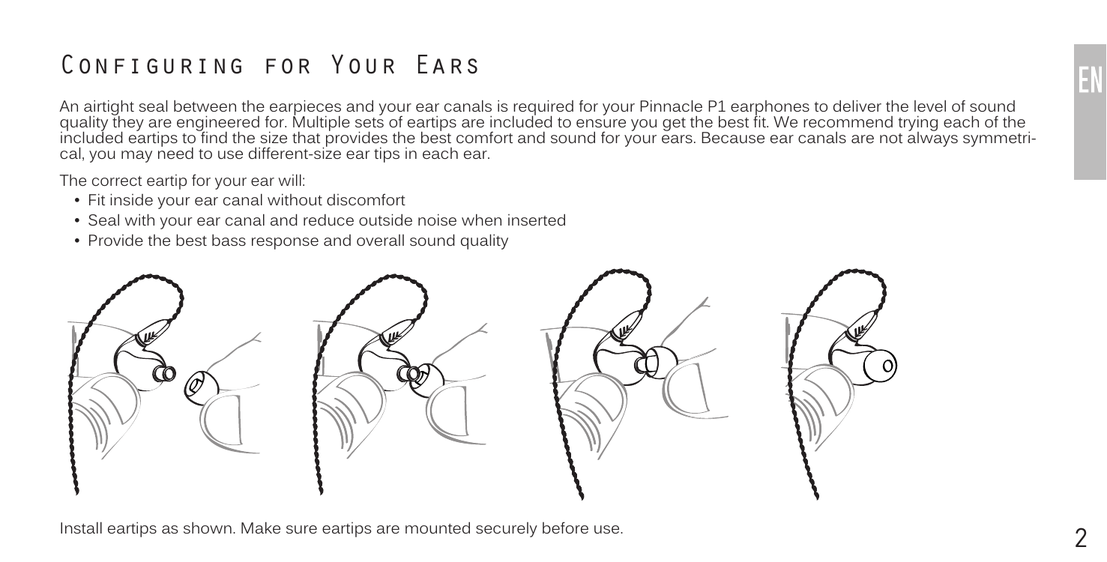

3. Configuring for Your Ears

An airtight seal between the earpieces and your ear canals is required for your Pinnacle P1 earphones to deliver the level of sound quality they are engineered for. Multiple sets of eartips are included to ensure you get the best fit. We recommend trying each of the included eartips to find the size that provides the best comfort and sound for your ears. Because ear canals are not always symmetrical, you may need to use different-size eartips in each ear.

The correct eartip for your ear will:

• Fit inside your ear canal without discomfort
• Seal with your ear canal and reduce outside noise when inserted
• Provide the best bass response and overall sound quality

Install eartips as shown. Make sure eartips are mounted securely before use.

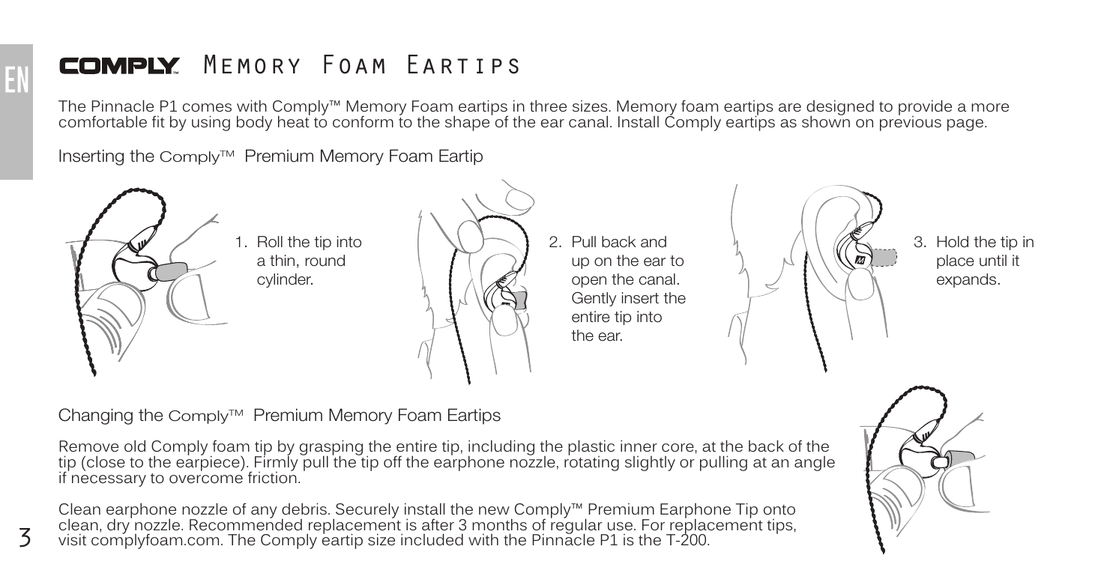

4. Memory Foam Eartips (Comply™)

The Pinnacle P1 comes with Comply™ Memory Foam eartips in three sizes. Memory foam eartips are designed to provide a more comfortable fit by using body heat to conform to the shape of the ear canal. Install Comply eartips as shown on the previous page.

Inserting Comply™ Memory Foam Eartips

1. Roll the tip into a thin, round cylinder.
2. Pull back and up on the ear to open the canal. Gently insert the entire tip into the ear.
3. Hold the tip in place until it expands.

Changing Comply™ Eartips

Remove the old Comply foam tip by grasping the entire tip, including the plastic inner core, at the back of the tip (close to the earpiece). Firmly pull the tip off the earphone nozzle, rotating slightly or pulling at an angle if necessary to overcome friction.

Clean the earphone nozzle of any debris. Securely install the new Comply™ Premium Earphone Tip onto the clean, dry nozzle. Recommended replacement is after 3 months of regular use. For replacement tips, visit complyfoam.com. The Comply eartip size included with the Pinnacle P1 is the T-200.

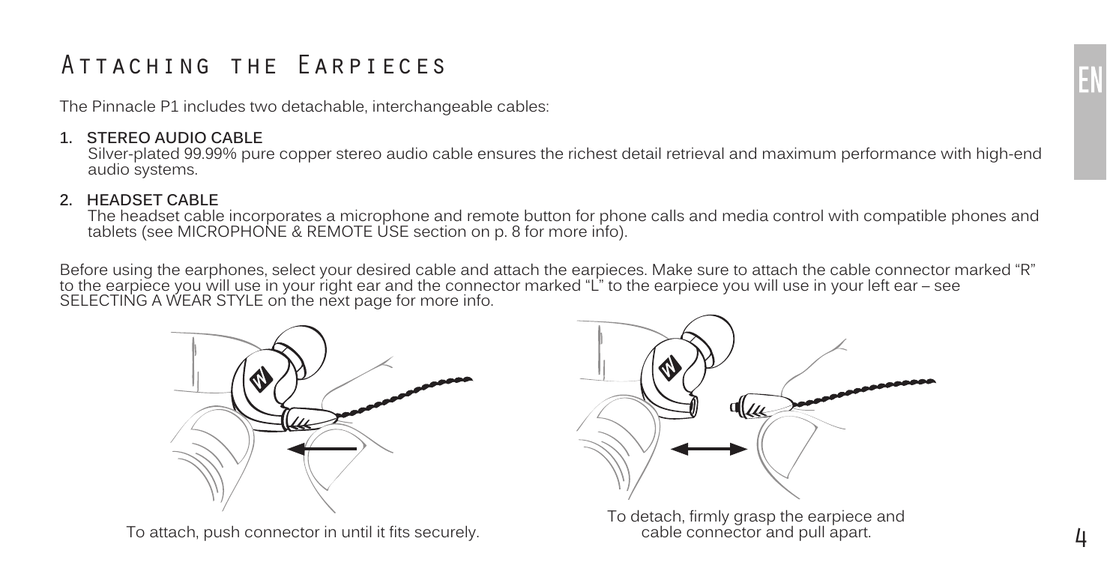

5. Attaching the Earpieces

The Pinnacle P1 includes two detachable, interchangeable cables:

1. Stereo Audio Cable

Silver-plated 99.99% pure copper stereo audio cable ensures the richest detail retrieval and maximum performance with high-end audio systems.

2. Headset Cable

The headset cable incorporates a microphone and remote button for phone calls and media control with compatible phones and tablets (see Microphone & Remote Use section for more info).

Before using the earphones, select your desired cable and attach the earpieces. Make sure to attach the cable connector marked "R" to the earpiece you will use in your right ear and the connector marked "L" to the earpiece you will use in your left ear.

To attach: push the connector in until it fits securely. To detach: firmly grasp the earpiece and cable connector and pull apart.

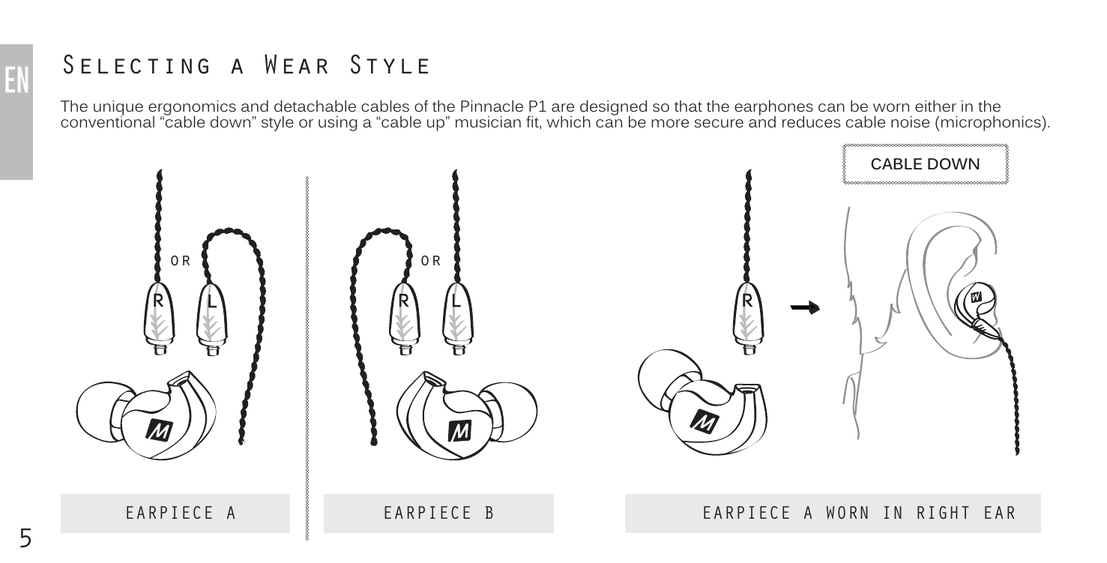

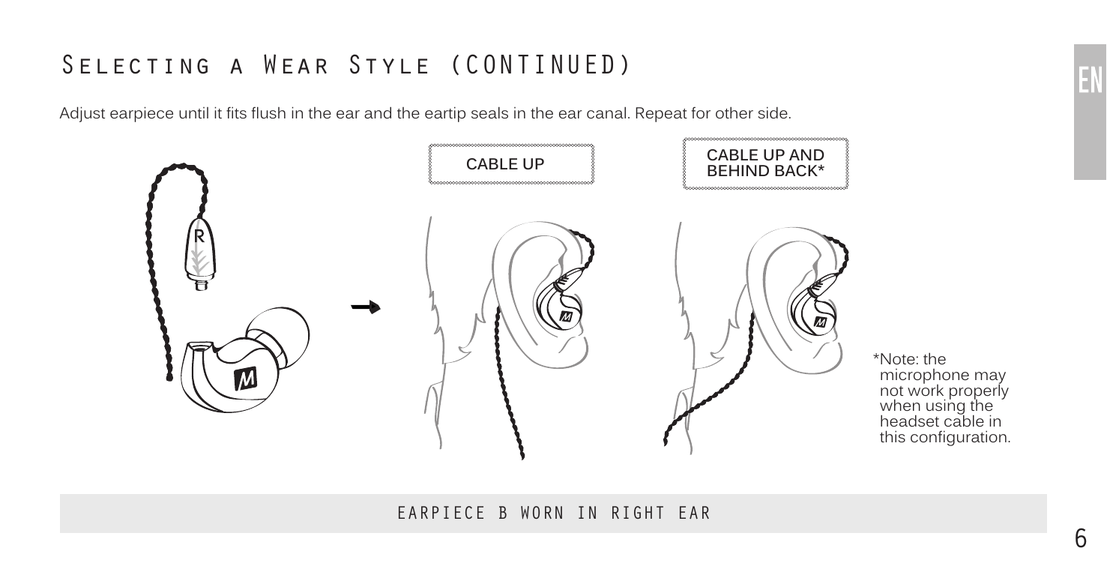

6. Selecting a Wear Style

The unique ergonomics and detachable cables of the Pinnacle P1 are designed so that the earphones can be worn either in the conventional "cable down" style or using a "cable up" musician fit, which can be more secure and reduces cable noise (microphonics).

Adjust the earpiece until it fits flush in the ear and the eartip seals in the ear canal. Repeat for the other side.

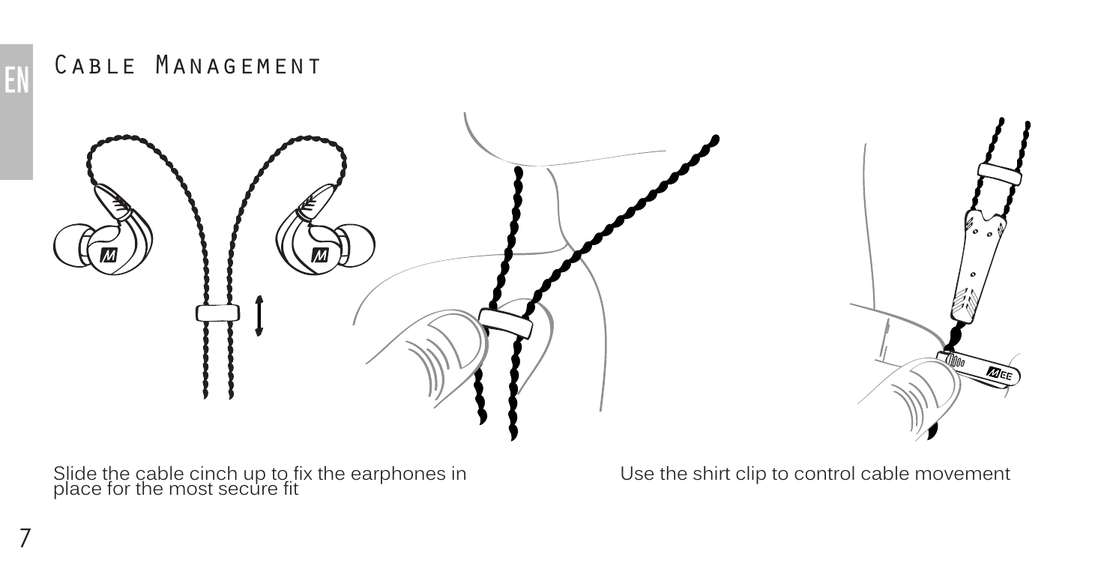

7. Cable Management

Slide the cable cinch up to fix the earphones in place for the most secure fit.

Use the shirt clip to control cable movement.

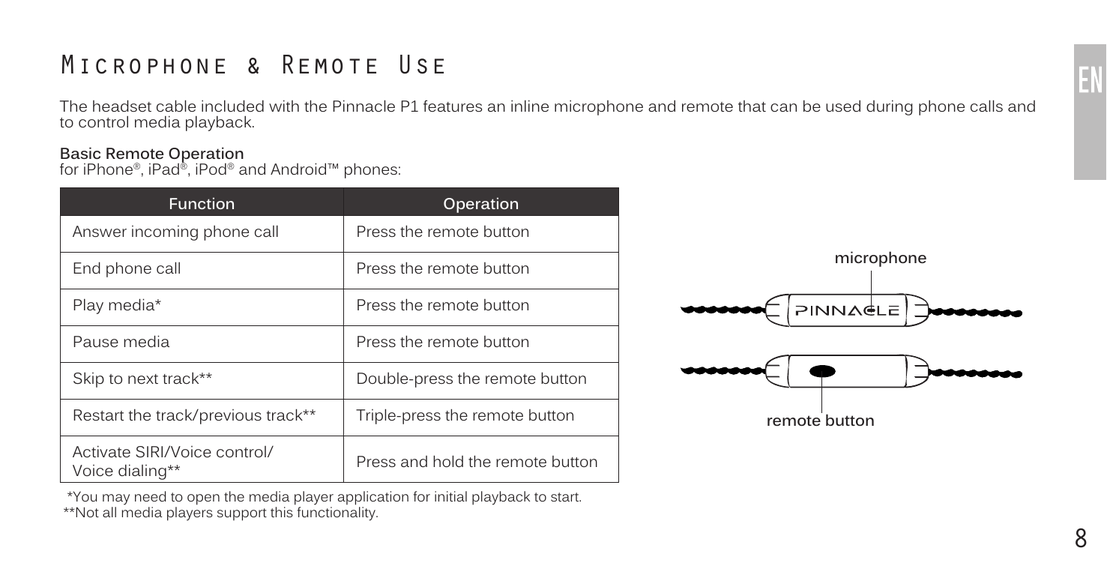

8. Microphone & Remote Use

The headset cable included with the Pinnacle P1 features an inline microphone and remote that can be used during phone calls and to control media playback.

Basic Remote Operation

For iPhone®, iPad®, iPod® and Android™ phones:

9. Care and Storage

• Do not remove from ears or headphone jack by pulling on the cable.
• Always store in the included protective carrying case when not in use. Do not store in direct sunlight, near heating devices, or in humid places.
• Do not expose to liquids. If the earphones come in contact with liquids, quickly wipe away. If submersed in water, do not use until completely dried. Note: liquid submersion voids the warranty.
• If necessary, clean the earphones with a small amount of hydrogen peroxide on a cotton swab. Swab only the outside of the earphone. Eartips can be removed and rinsed under running water or in hydrogen peroxide. Allow earphones and eartips to dry completely before resuming use.
• Replacement parts and accessories are available online at www.MEEaudio.com.

10. Support & Warranty

Support

Warranty

MEE earphones purchased from authorized retailers are covered by a 2-year manufacturer warranty. Visit www.MEEaudio.com for warranty information.

Specifications

See the Pinnacle P1 product page at www.MEEaudio.com for product specifications.
