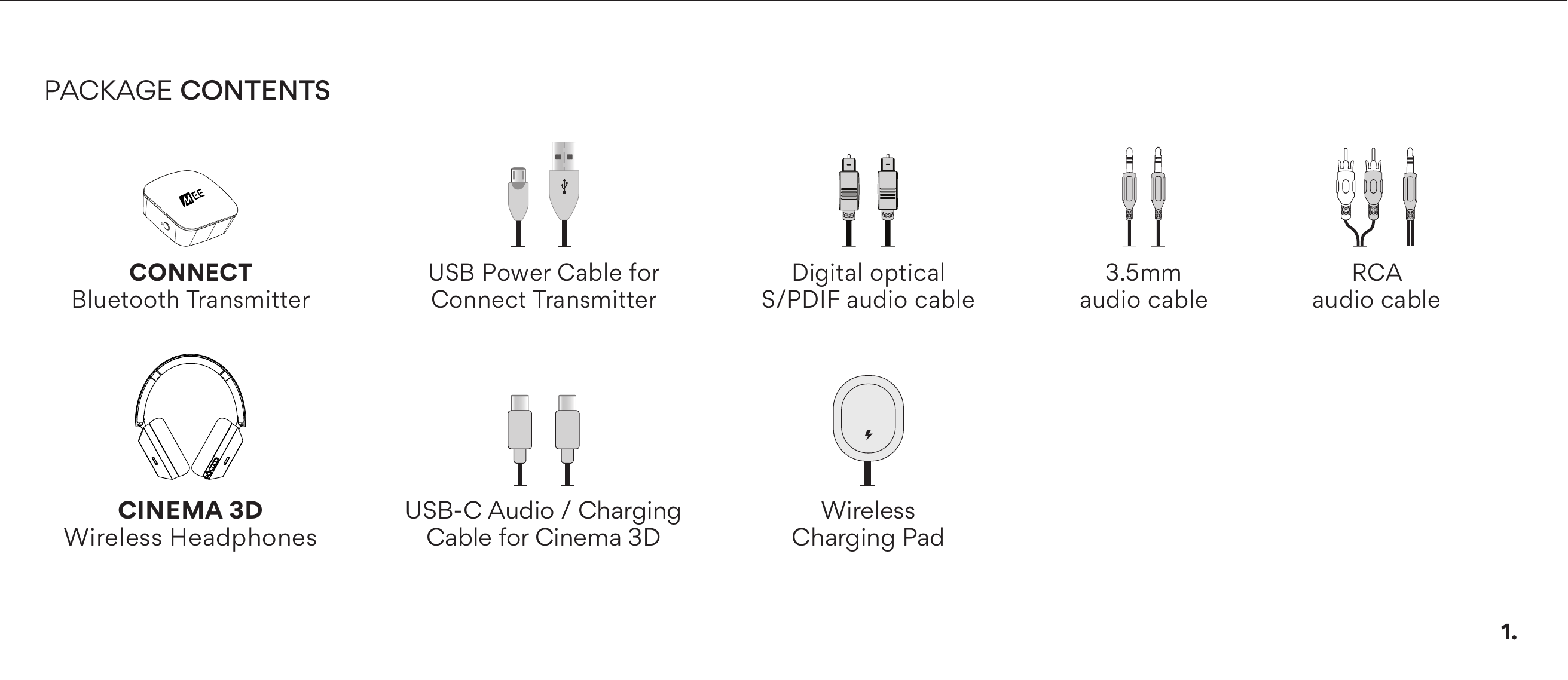

Package Contents

• CONNECT Bluetooth Transmitter
• CINEMA 3D Wireless Headphones
• USB Power Cable for Connect Transmitter
• USB-C Audio / Charging Cable for Cinema 3D
• Digital Optical S/PDIF Audio Cable
• 3.5 mm Audio Cable
• RCA Audio Cable
• Wireless Charging Pad

Product Overview

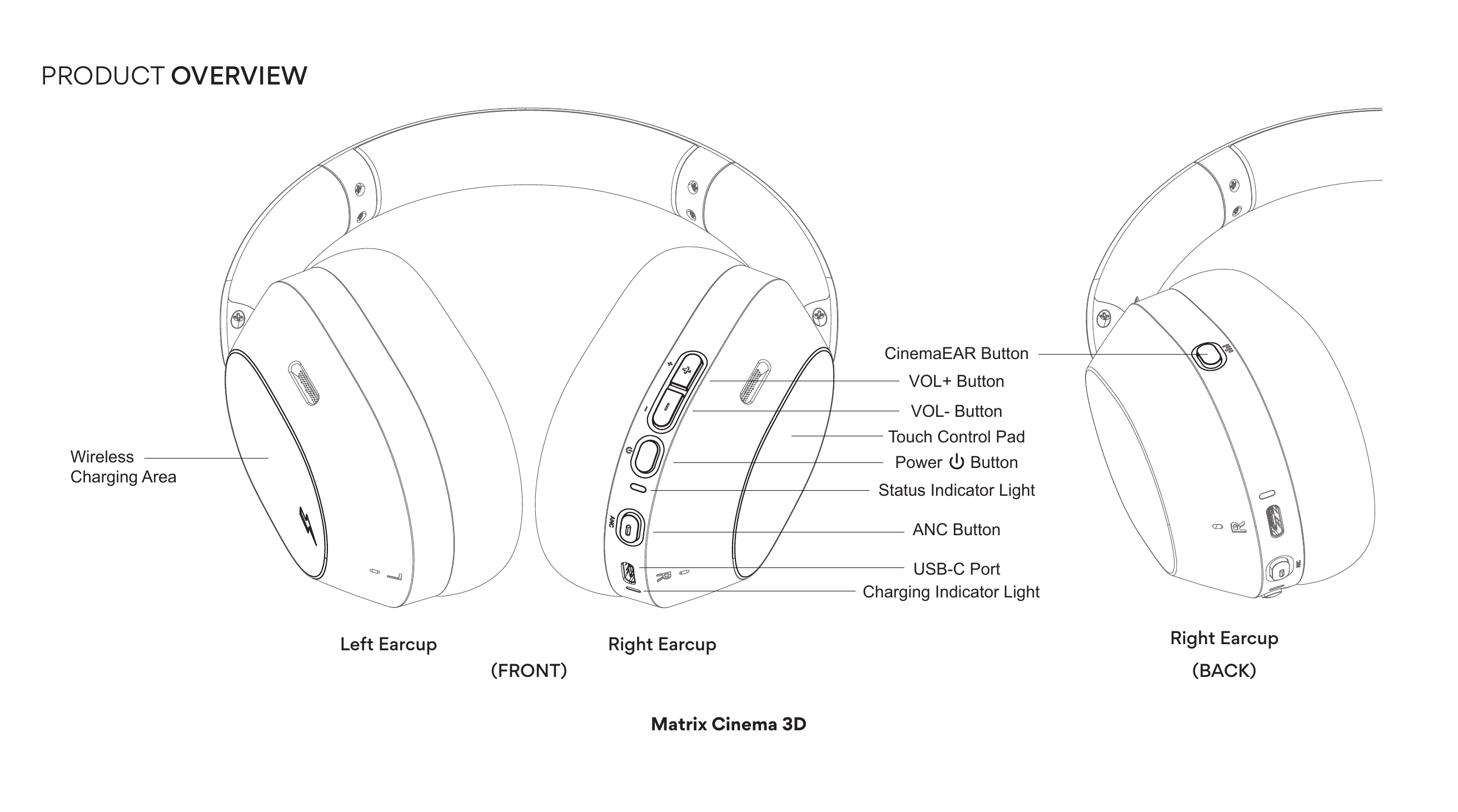

Matrix Cinema 3D Headphones

Left Earcup (Front): Wireless Charging Area

Right Earcup (Front):

• CinemaEAR Button
• VOL+ Button
• VOL− Button
• Touch Control Pad
• Power Button
• Status Indicator Light
• ANC Button
• USB-C Port
• Charging Indicator Light

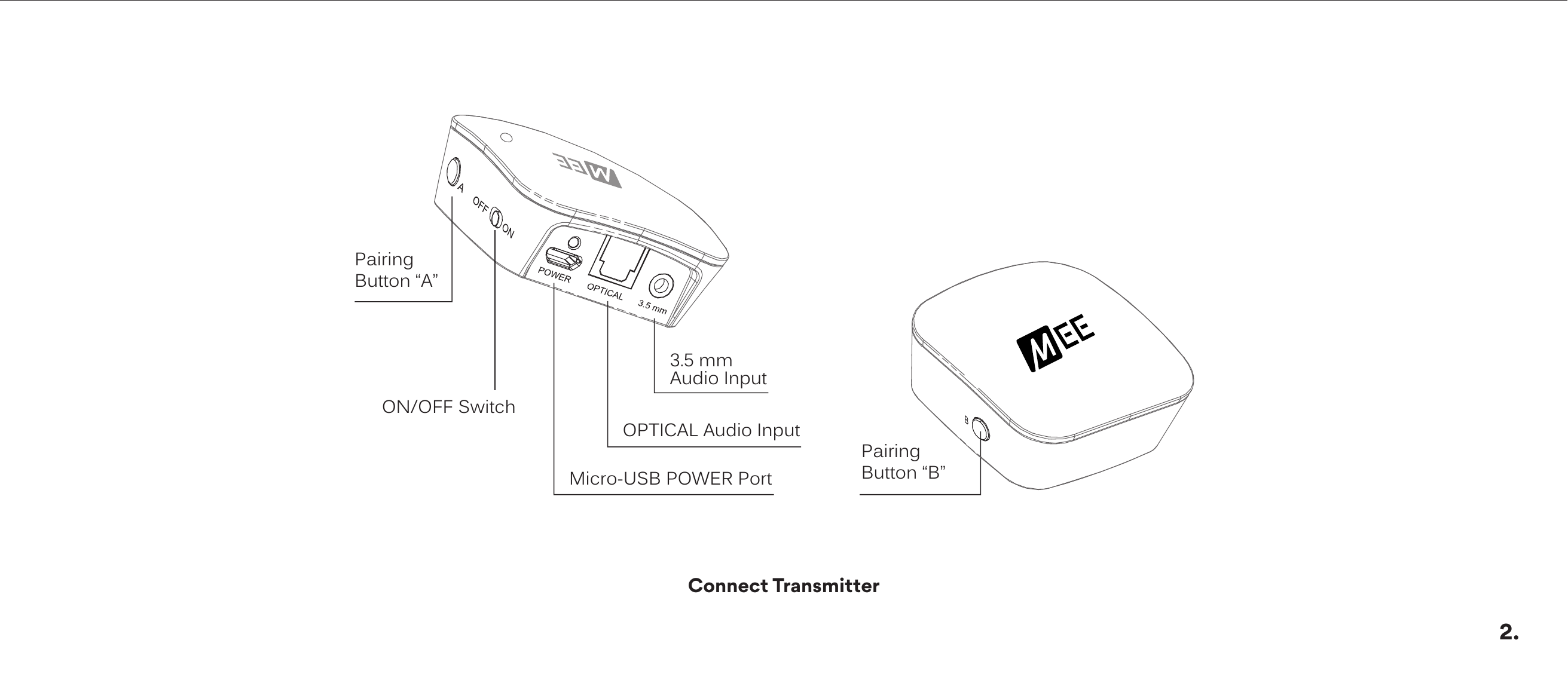

Connect Transmitter

• Micro-USB POWER Port
• ON/OFF Switch
• Pairing Button "A"
• Pairing Button "B"
• OPTICAL Audio Input
• 3.5 mm Audio Input

Getting Started

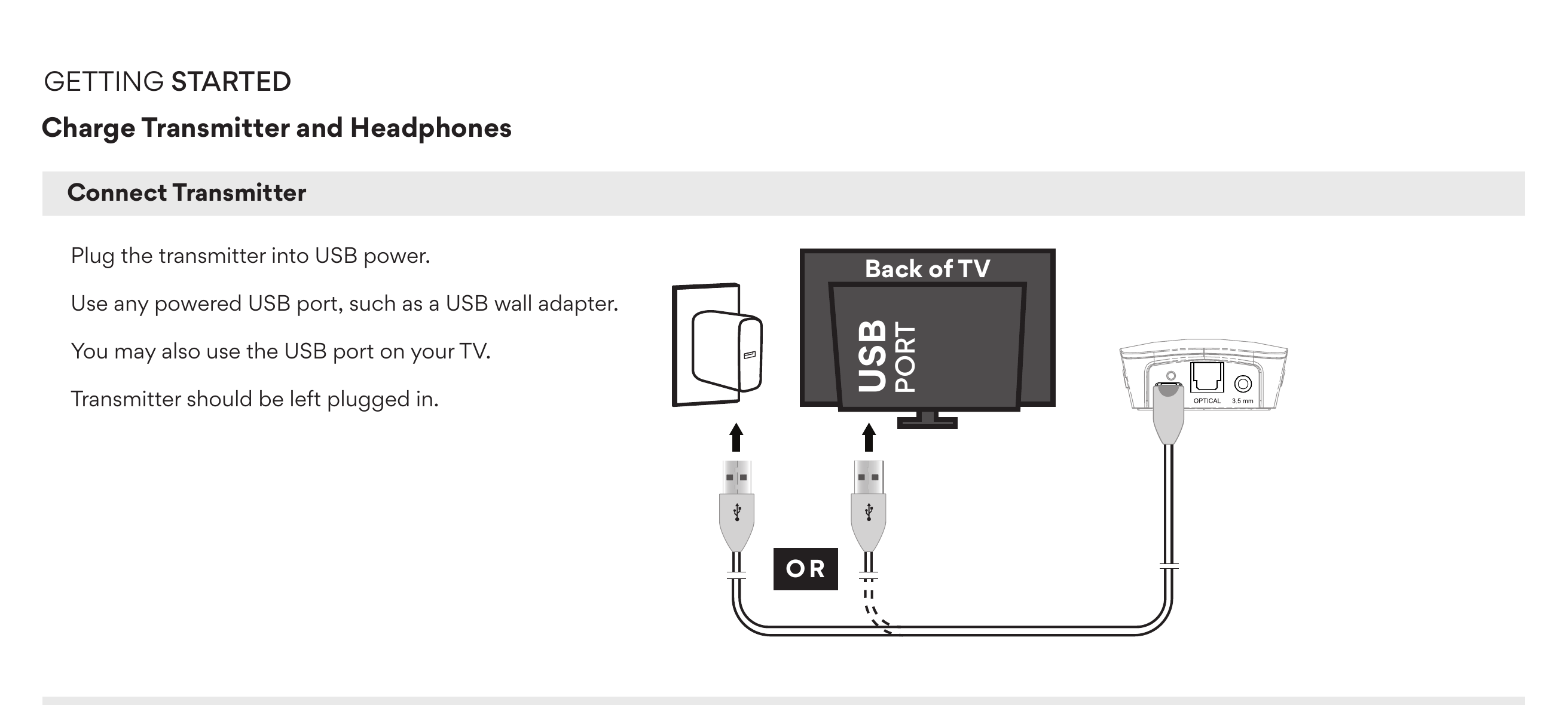

Charge Transmitter and Headphones

Connect Transmitter

Plug the transmitter into USB power. Use any powered USB port, such as a USB wall adapter. You may also use the USB port on your TV. The transmitter should be left plugged in.

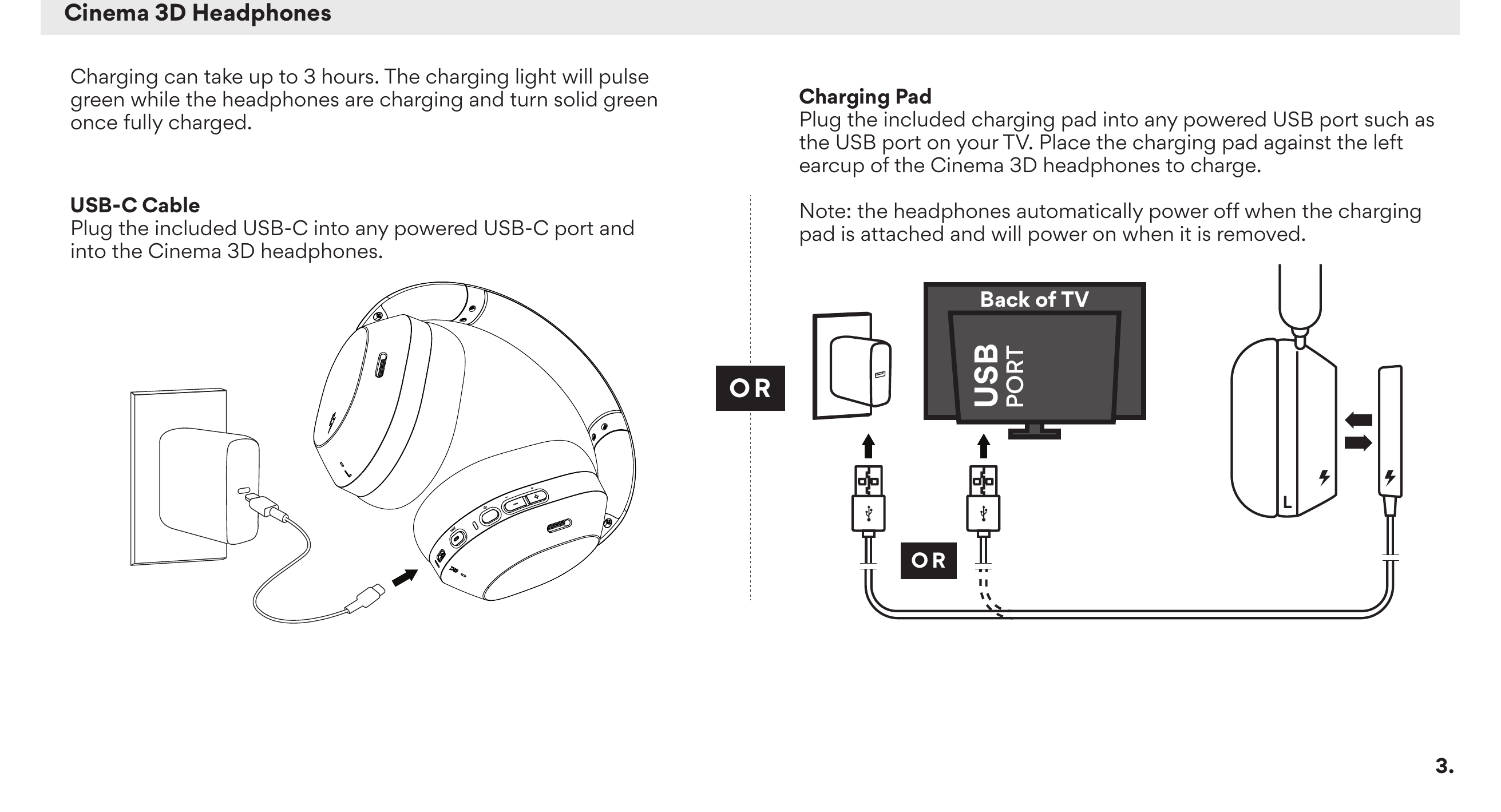

Cinema 3D Headphones

Charging can take up to 3 hours. The charging light will pulse green while the headphones are charging and turn solid green once fully charged.

USB-C Cable: Plug the included USB-C cable into any powered USB-C port and into the Cinema 3D headphones.

Charging Pad: Plug the included charging pad into any powered USB port, such as the USB port on your TV. Place the charging pad against the left earcup of the Cinema 3D headphones to charge.

Note: The headphones automatically power off when the charging pad is attached and will power on when it is removed.

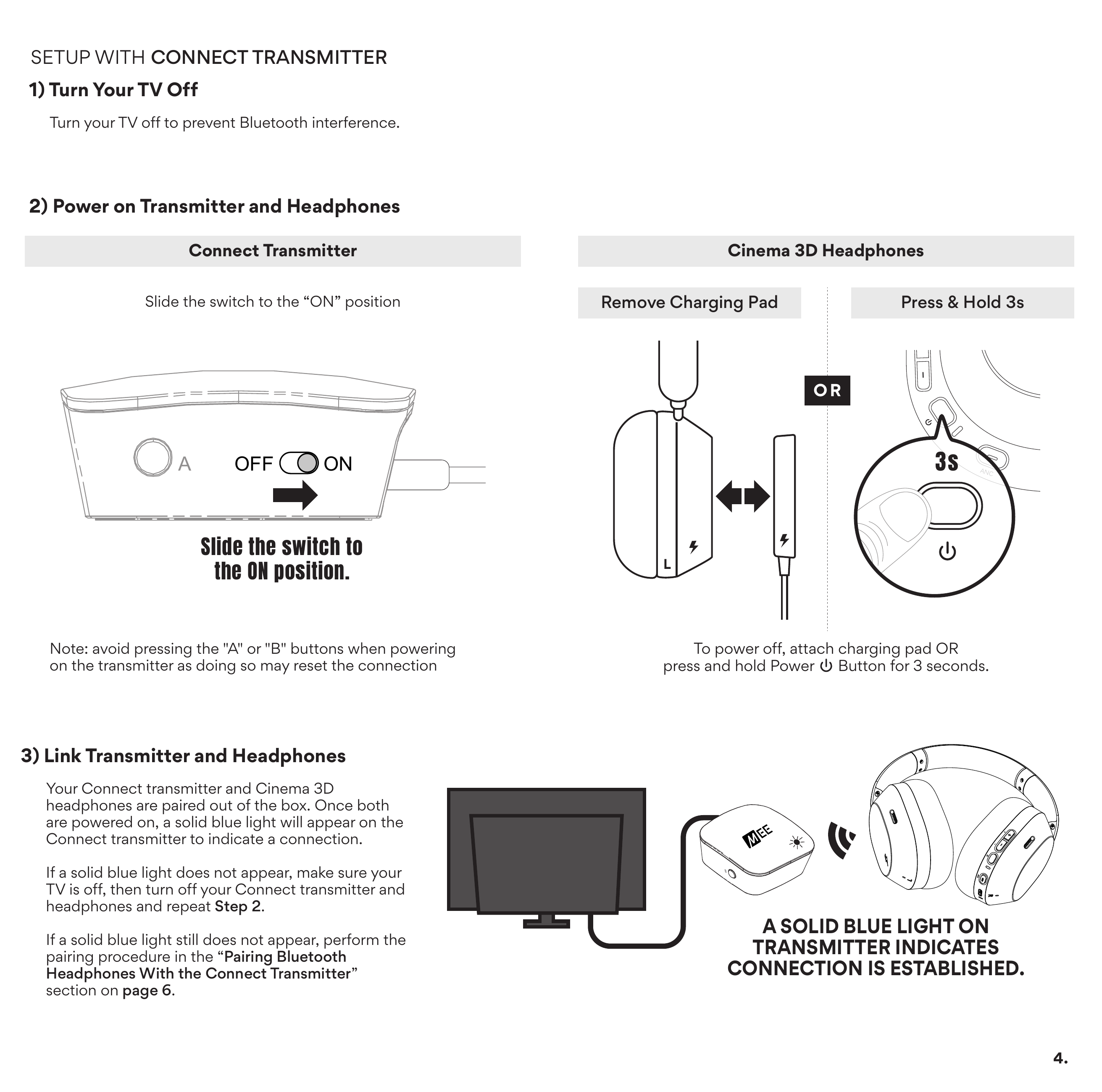

Setup With Connect Transmitter

Step 2: Power on Transmitter and Headphones

Connect Transmitter: Slide the switch to the "ON" position.

Cinema 3D Headphones (choose one):

• Remove the Charging Pad, OR
• Press and hold the Power Button for 3 seconds.

To power off: attach the charging pad OR press and hold the Power Button for 3 seconds.

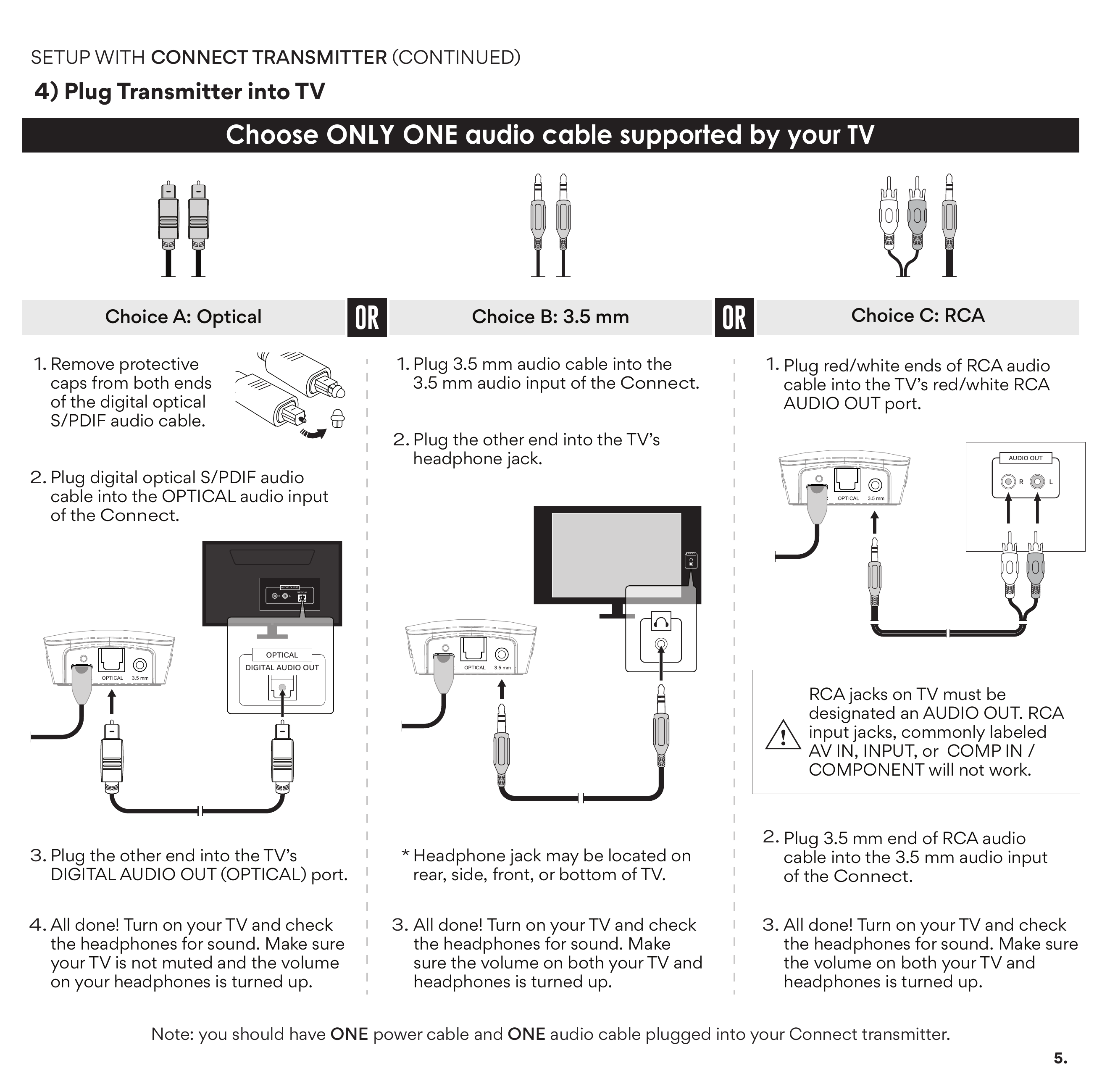

Step 4: Plug Transmitter into TV

Choose only one audio cable supported by your TV:

Choice A: Optical

1. Remove protective caps from both ends of the digital optical S/PDIF audio cable.
2. Plug the digital optical S/PDIF audio cable into the OPTICAL audio input of the Connect.
3. Plug the other end into the TV's DIGITAL AUDIO OUT (OPTICAL) port.
4. All done! Turn on your TV and check the headphones for sound. Make sure your TV is not muted and the volume on your headphones is turned up.

Choice B: 3.5 mm

1. Plug the 3.5 mm audio cable into the 3.5 mm audio input of the Connect.
2. Plug the other end into the TV's headphone jack. The headphone jack may be located on the rear, side, front, or bottom of the TV.
3. All done! Turn on your TV and check the headphones for sound. Make sure the volume on both your TV and headphones is turned up.

Choice C: RCA

1. Plug the red/white ends of the RCA audio cable into the TV's red/white RCA AUDIO OUT port.
2. Plug the 3.5 mm end of the RCA audio cable into the 3.5 mm audio input of the Connect.
3. All done! Turn on your TV and check the headphones for sound. Make sure the volume on both your TV and headphones is turned up.

⚠ RCA jacks on TV must be designated as AUDIO OUT. RCA input jacks, commonly labeled AV IN, INPUT, or COMP IN / COMPONENT will not work.

Note: You should have ONE power cable and ONE audio cable plugged into your Connect transmitter.

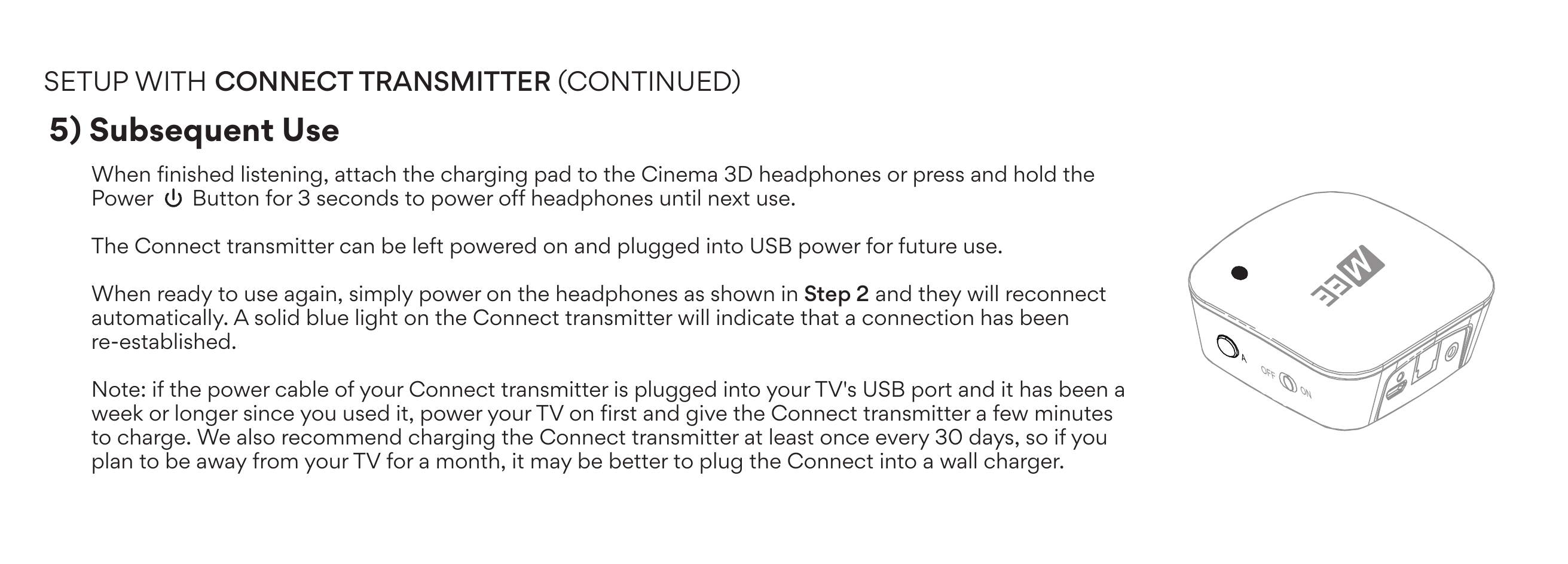

Step 5: Subsequent Use

When finished listening, attach the charging pad to the Cinema 3D headphones or press and hold the Power Button for 3 seconds to power off headphones until next use.

The Connect transmitter can be left powered on and plugged into USB power for future use.

When ready to use again, simply power on the headphones as shown in Step 2 and they will reconnect automatically. A solid blue light on the Connect transmitter will indicate that a connection has been re-established.

Note: If the power cable of your Connect transmitter is plugged into your TV's USB port and it has been a week or longer since you used it, power your TV on first and give the Connect transmitter a few minutes to charge. We also recommend charging the Connect transmitter at least once every 30 days.

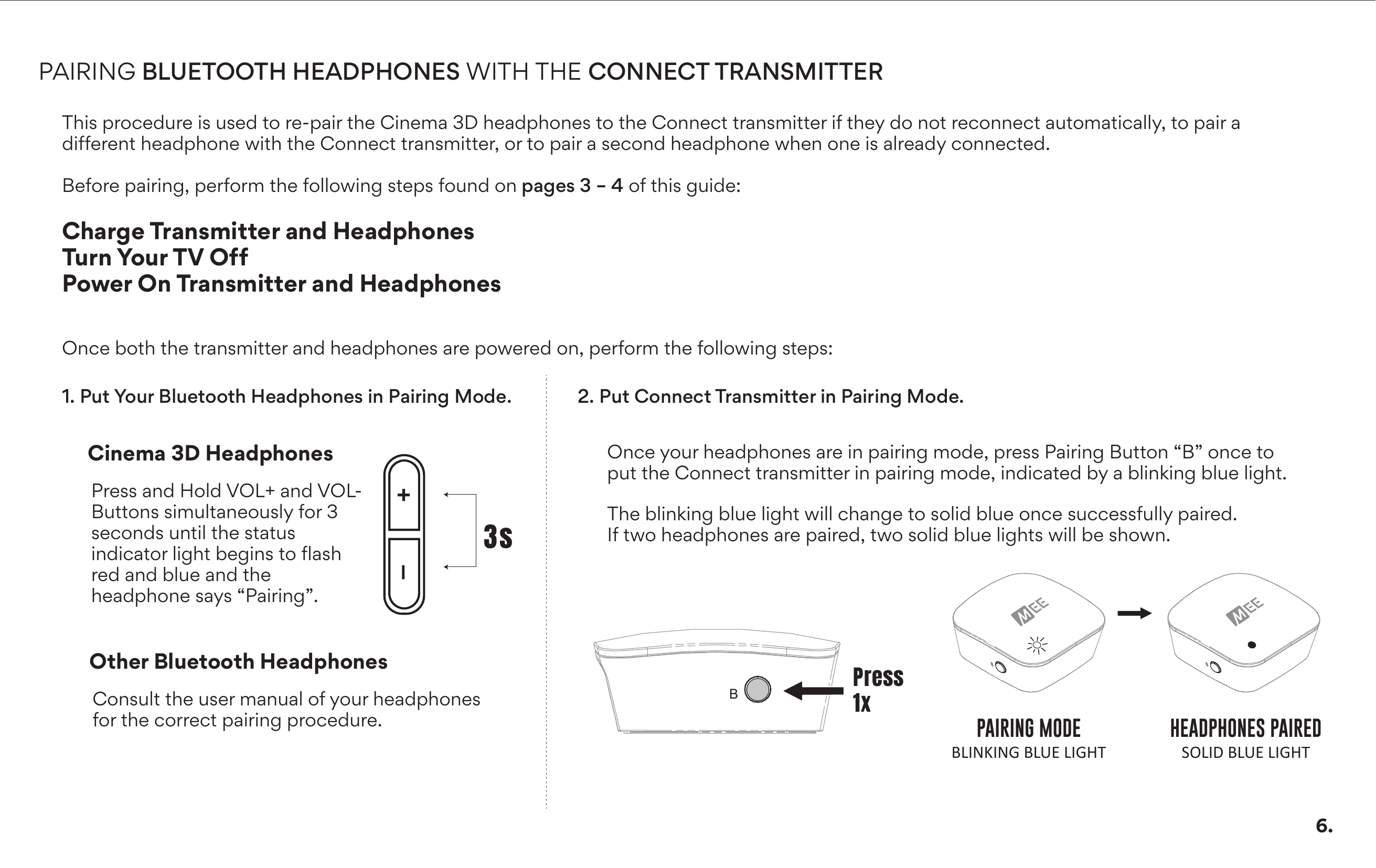

Pairing Bluetooth Headphones with the Connect Transmitter

This procedure is used to re-pair the Cinema 3D headphones to the Connect transmitter if they do not reconnect automatically, to pair a different headphone with the Connect transmitter, or to pair a second headphone when one is already connected.

Before pairing, perform the following steps:

• Charge Transmitter and Headphones
• Turn Your TV Off
• Power On Transmitter and Headphones

Once both the transmitter and headphones are powered on, perform the following steps:

Step 1: Put Your Bluetooth Headphones in Pairing Mode

Cinema 3D Headphones: Press and hold the VOL+ and VOL− Buttons simultaneously for 3 seconds until the status indicator light begins to flash red and blue and the headphone says "Pairing".

Other Bluetooth Headphones: Consult the user manual of your headphones for the correct pairing procedure.

Step 2: Put Connect Transmitter in Pairing Mode

Once your headphones are in pairing mode, press Pairing Button "B" once to put the Connect transmitter in pairing mode, indicated by a blinking blue light. The blinking blue light will change to solid blue once successfully paired. If two headphones are paired, two solid blue lights will be shown.

About the Cinema 3D Headphones

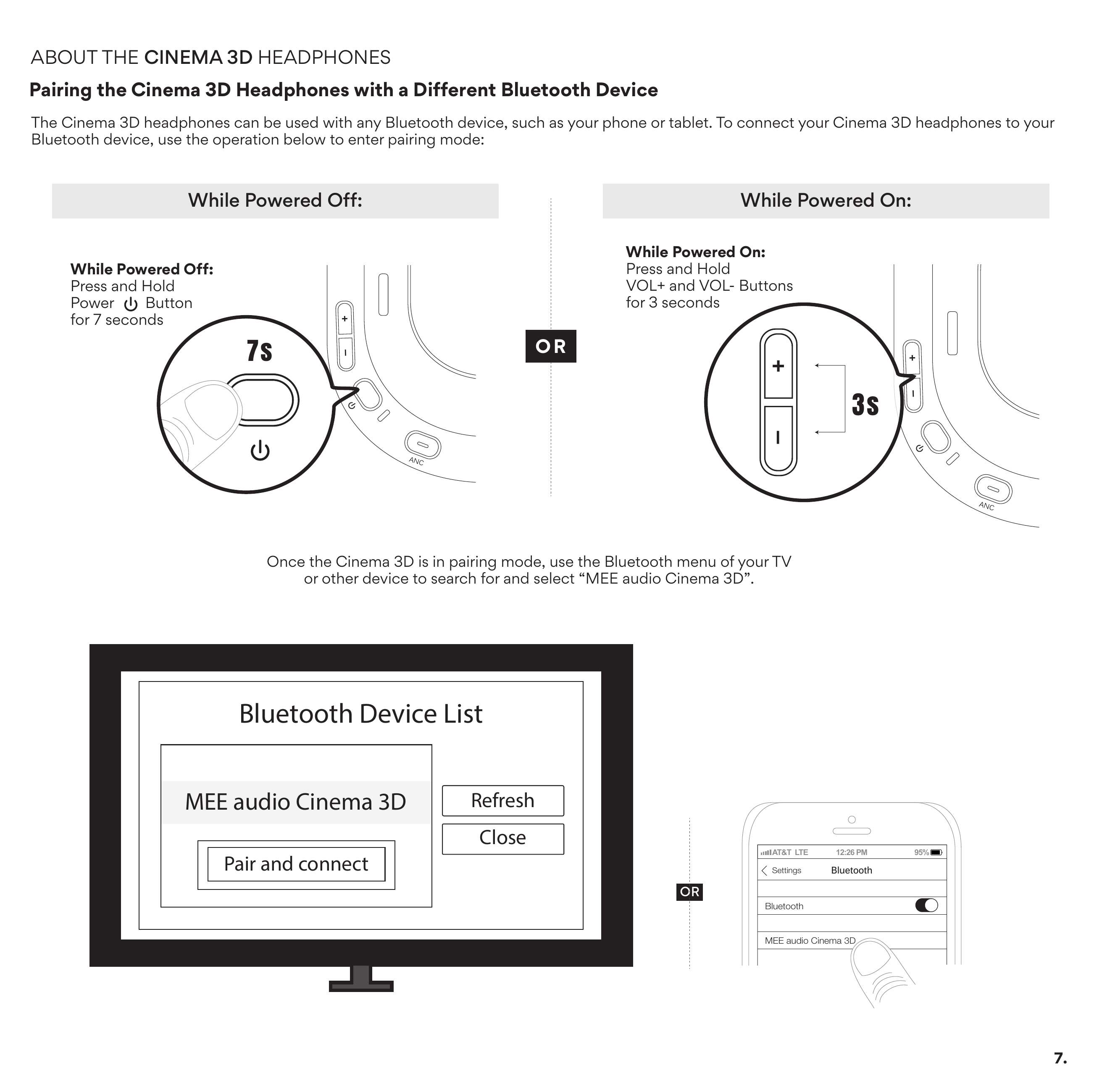

Pairing the Cinema 3D Headphones with a Different Bluetooth Device

The Cinema 3D headphones can be used with any Bluetooth device, such as your phone or tablet. Use the operation below to enter pairing mode:

While Powered Off

Press and hold the Power Button for 7 seconds.

While Powered On

Press and hold the VOL+ and VOL− Buttons for 3 seconds.

Once the Cinema 3D is in pairing mode, use the Bluetooth menu of your TV or other device to search for and select "MEE audio Cinema 3D".

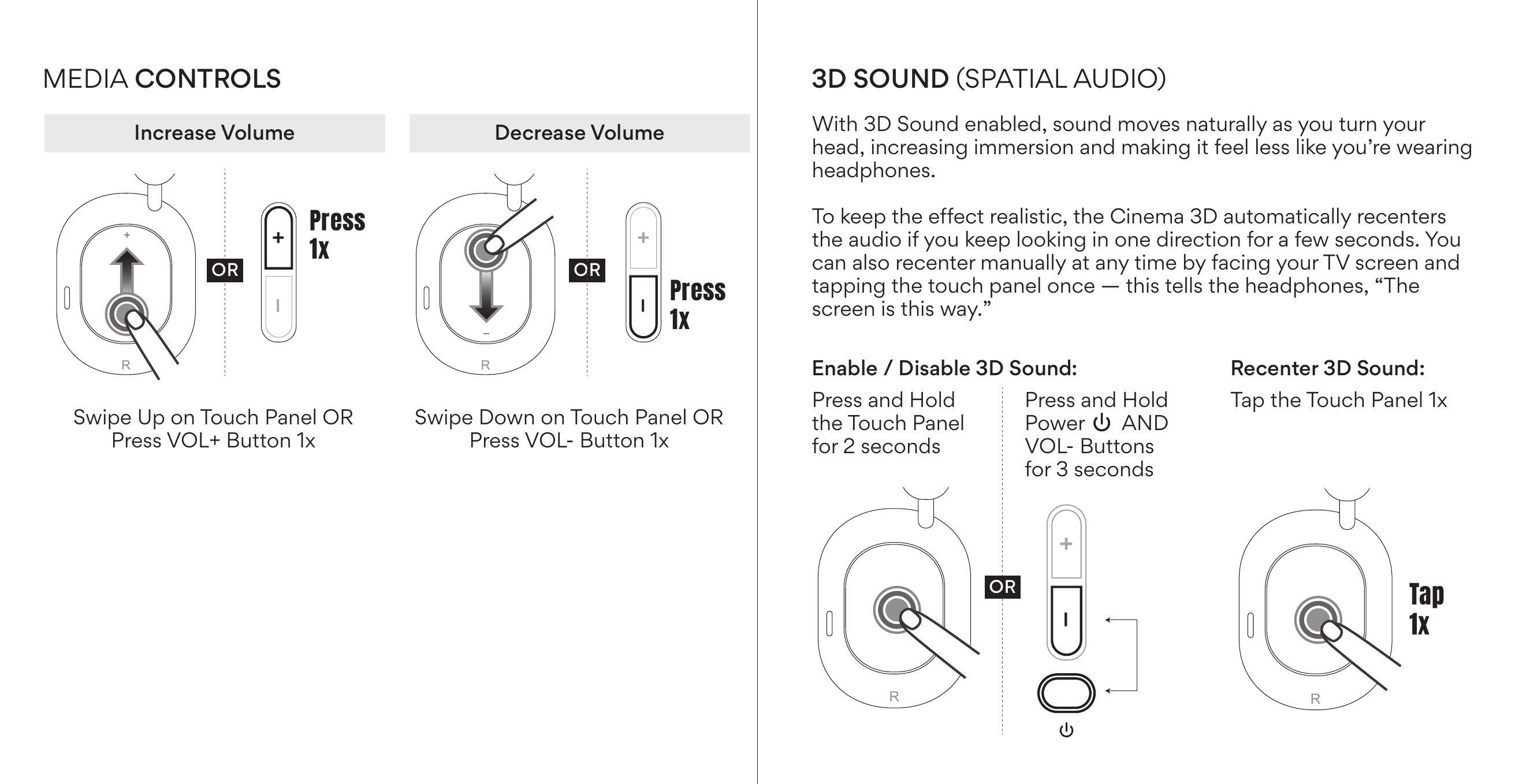

Media Controls

Volume

• Increase Volume: Swipe up on Touch Panel, OR press VOL+ Button 1×
• Decrease Volume: Swipe down on Touch Panel, OR press VOL− Button 1×

3D Sound (Spatial Audio)

With 3D Sound enabled, sound moves naturally as you turn your head, increasing immersion and making it feel less like you're wearing headphones.

To keep the effect realistic, the Cinema 3D automatically recenters the audio if you keep looking in one direction for a few seconds. You can also recenter manually at any time by facing your TV screen and tapping the touch panel once.

Enable / Disable 3D Sound

• Press and hold the Touch Panel for 2 seconds, OR
• Press and hold the Power AND VOL− Buttons for 3 seconds.

Recenter 3D Sound

Tap the Touch Panel 1×.

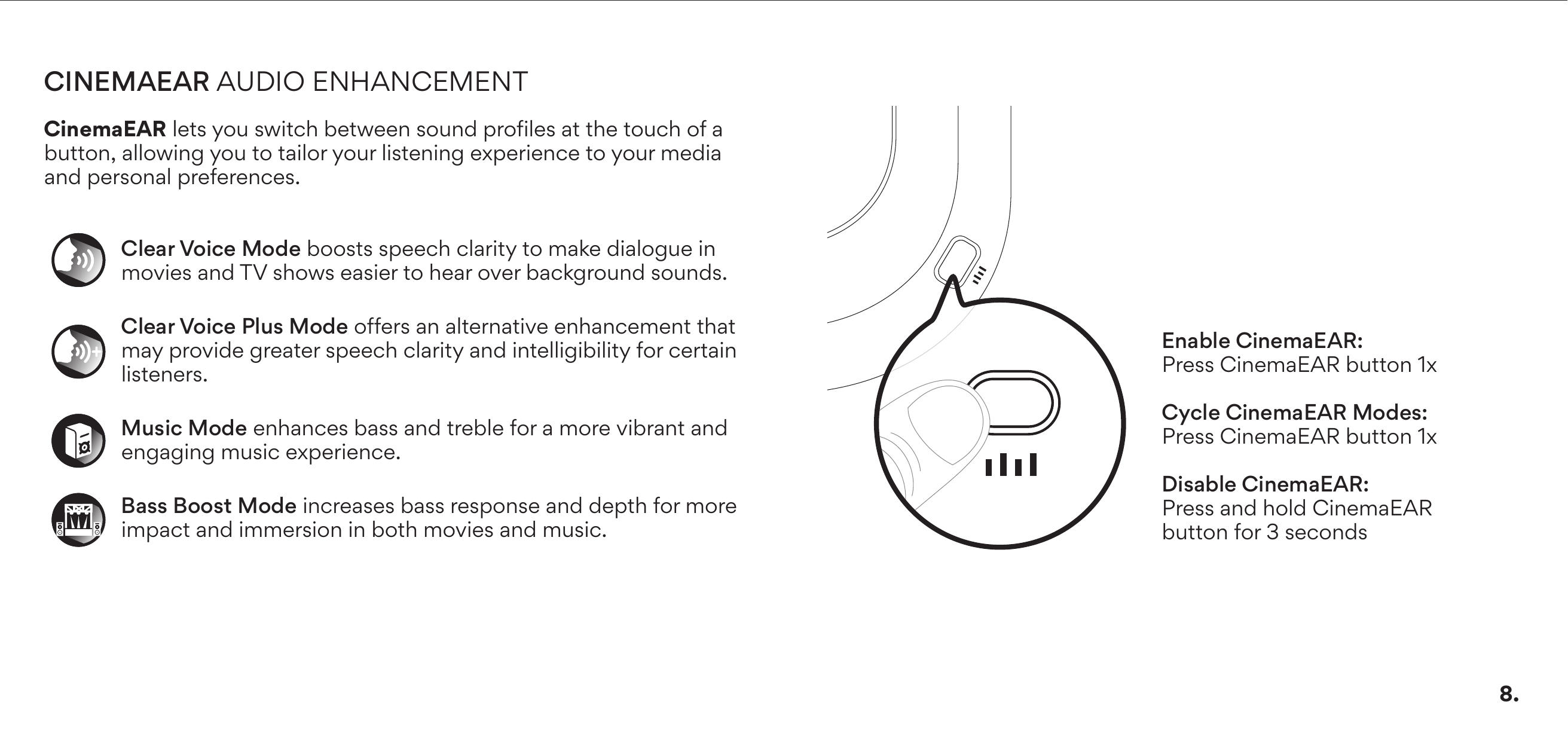

CinemaEAR Audio Enhancement

CinemaEAR lets you switch between sound profiles at the touch of a button, allowing you to tailor your listening experience to your media and personal preferences.

• Clear Voice Mode: Boosts speech clarity to make dialogue in movies and TV shows easier to hear over background sounds.
• Clear Voice Plus Mode: Offers an alternative enhancement that may provide greater speech clarity and intelligibility for certain listeners.
• Music Mode: Enhances bass and treble for a more vibrant and engaging music experience.
• Bass Boost Mode: Increases bass response and depth for more impact and immersion in both movies and music.

• Enable CinemaEAR: Press CinemaEAR Button 1×
• Cycle CinemaEAR Modes: Press CinemaEAR Button 1×
• Disable CinemaEAR: Press and hold CinemaEAR Button for 3 seconds

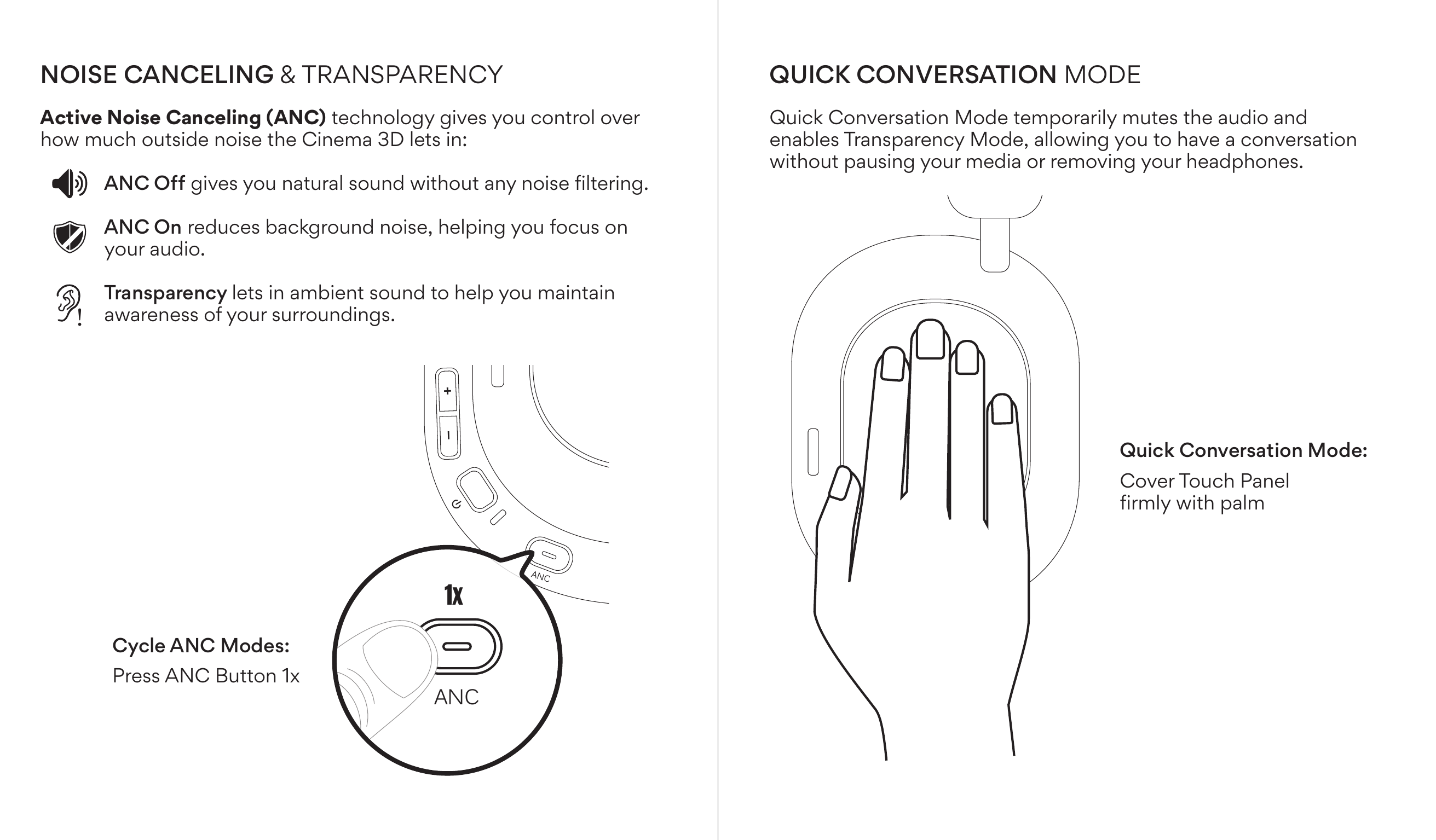

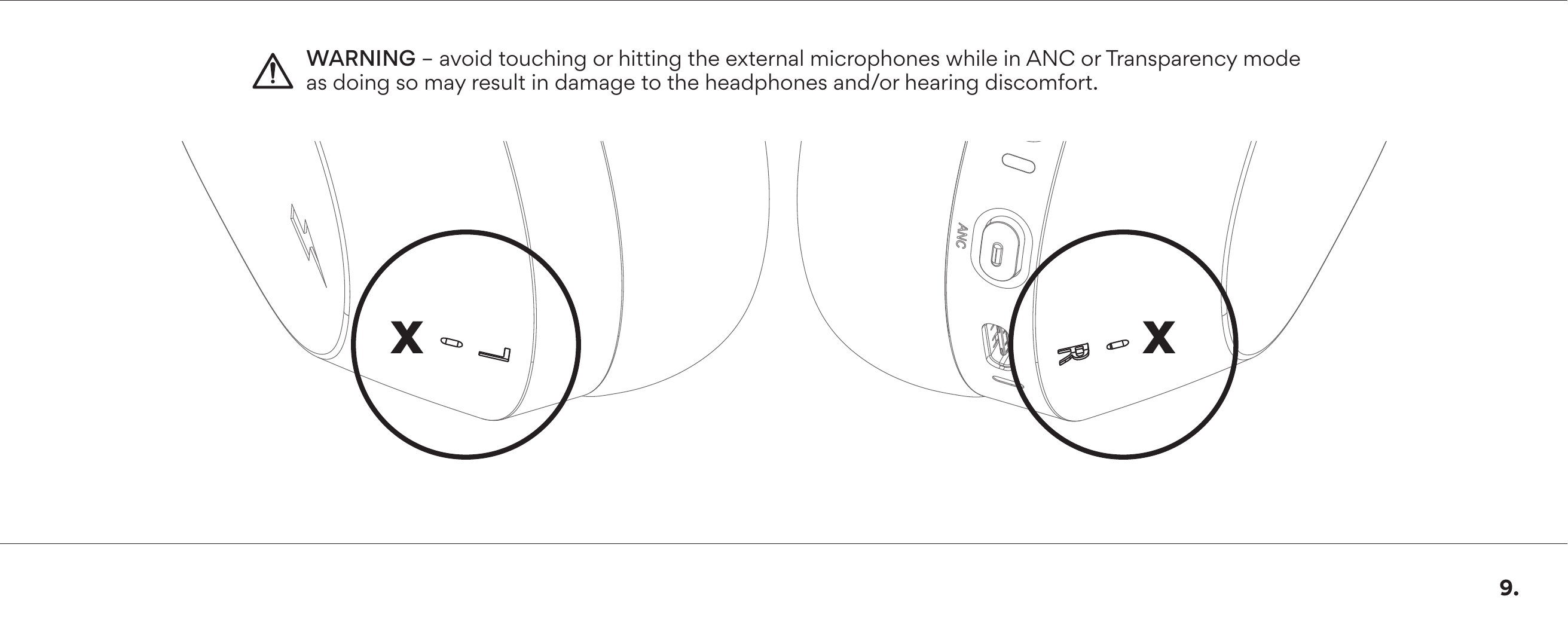

Noise Canceling & Transparency

Active Noise Canceling (ANC) technology gives you control over how much outside noise the Cinema 3D lets in:

• ANC Off: Gives you natural sound without any noise filtering.
• ANC On: Reduces background noise, helping you focus on your audio.
• Transparency: Lets in ambient sound to help you maintain awareness of your surroundings.

Cycle ANC Modes: Press ANC Button 1×

Quick Conversation Mode

Quick Conversation Mode temporarily mutes the audio and enables Transparency Mode, allowing you to have a conversation without pausing your media or removing your headphones.

Quick Conversation Mode: Cover Touch Panel firmly with palm.

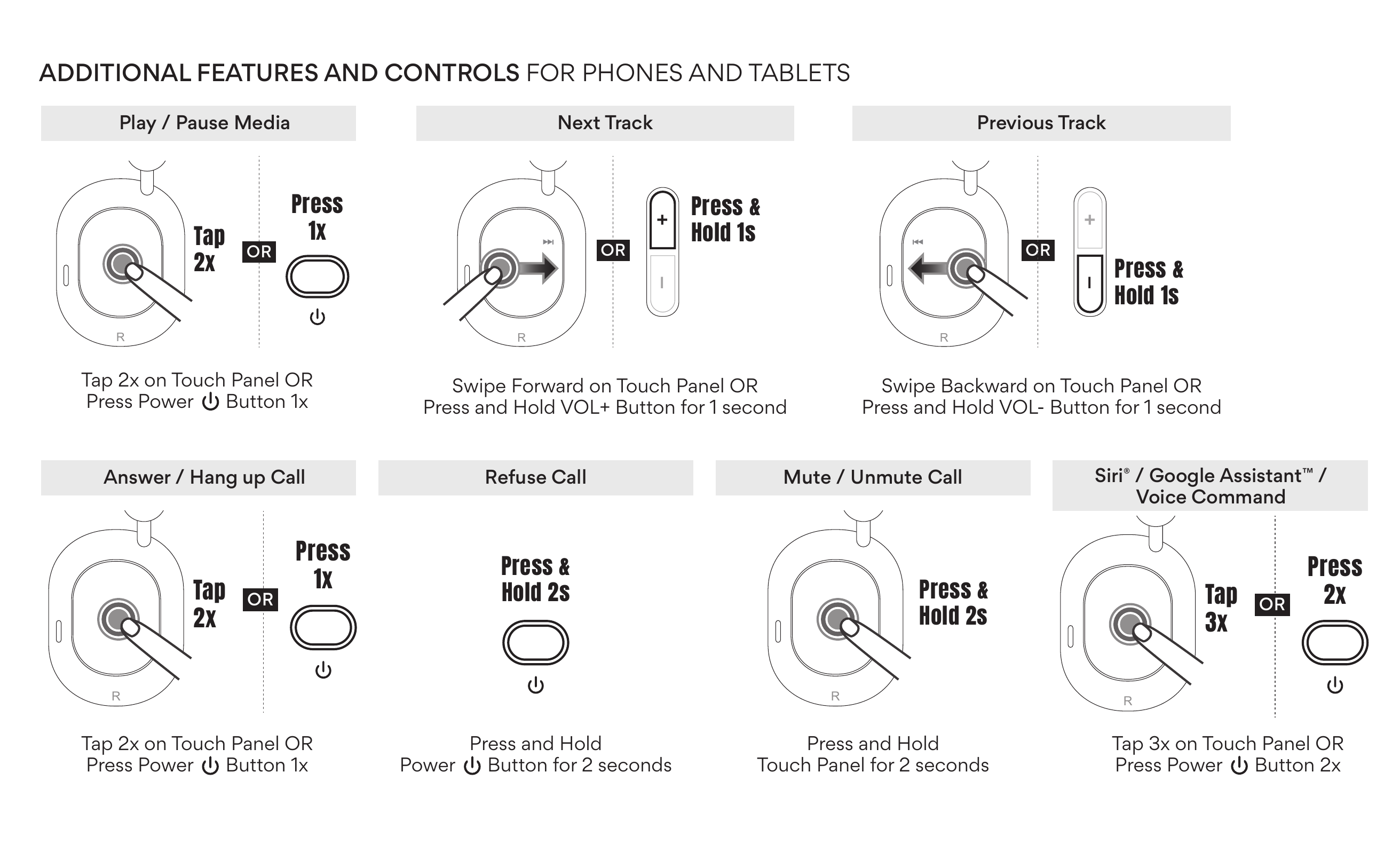

Additional Features and Controls for Phones and Tablets

Media Controls

• Play / Pause: Tap Touch Panel 2×, OR press Power Button 1×
• Next Track: Swipe forward on Touch Panel, OR press and hold VOL+ Button for 1 second
• Previous Track: Swipe backward on Touch Panel, OR press and hold VOL− Button for 1 second

Phone Call Controls

• Answer / Hang up Call: Tap Touch Panel 2×, OR press Power Button 1×
• Refuse Call: Press and hold Power Button for 2 seconds
• Mute / Unmute Call: Press and hold Touch Panel for 2 seconds
• Siri® / Google Assistant™ / Voice Command: Tap Touch Panel 3×, OR press Power Button 2×

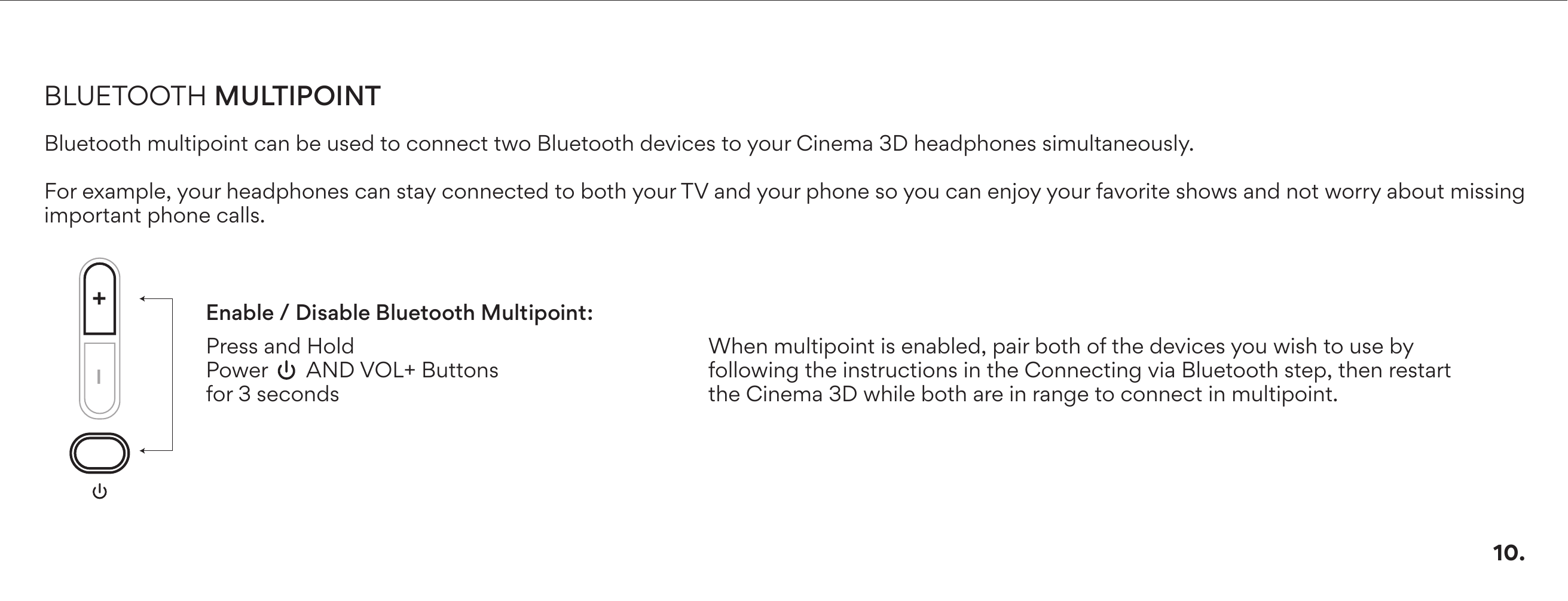

Bluetooth Multipoint

Bluetooth multipoint can be used to connect two Bluetooth devices to your Cinema 3D headphones simultaneously. For example, your headphones can stay connected to both your TV and your phone so you can enjoy your favorite shows and not worry about missing important phone calls.

When multipoint is enabled, pair both of the devices you wish to use by following the Bluetooth pairing instructions, then restart the Cinema 3D while both are in range to connect in multipoint.

Enable / Disable Bluetooth Multipoint: Press and hold Power AND VOL+ Buttons for 3 seconds.

Other Connection Options

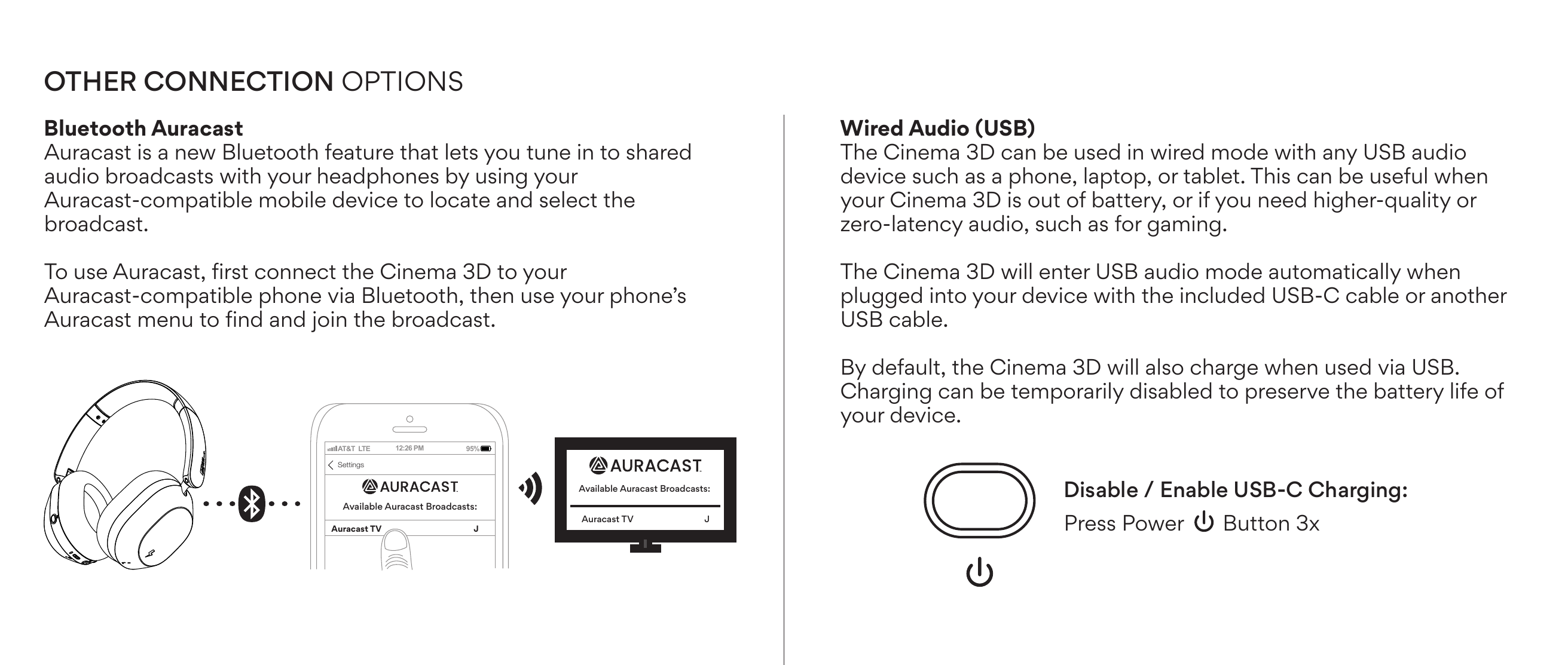

Bluetooth Auracast

Auracast is a new Bluetooth feature that lets you tune in to shared audio broadcasts with your headphones by using your Auracast-compatible mobile device to locate and select the broadcast.

To use Auracast, first connect the Cinema 3D to your Auracast-compatible phone via Bluetooth, then use your phone's Auracast menu to find and join the broadcast.

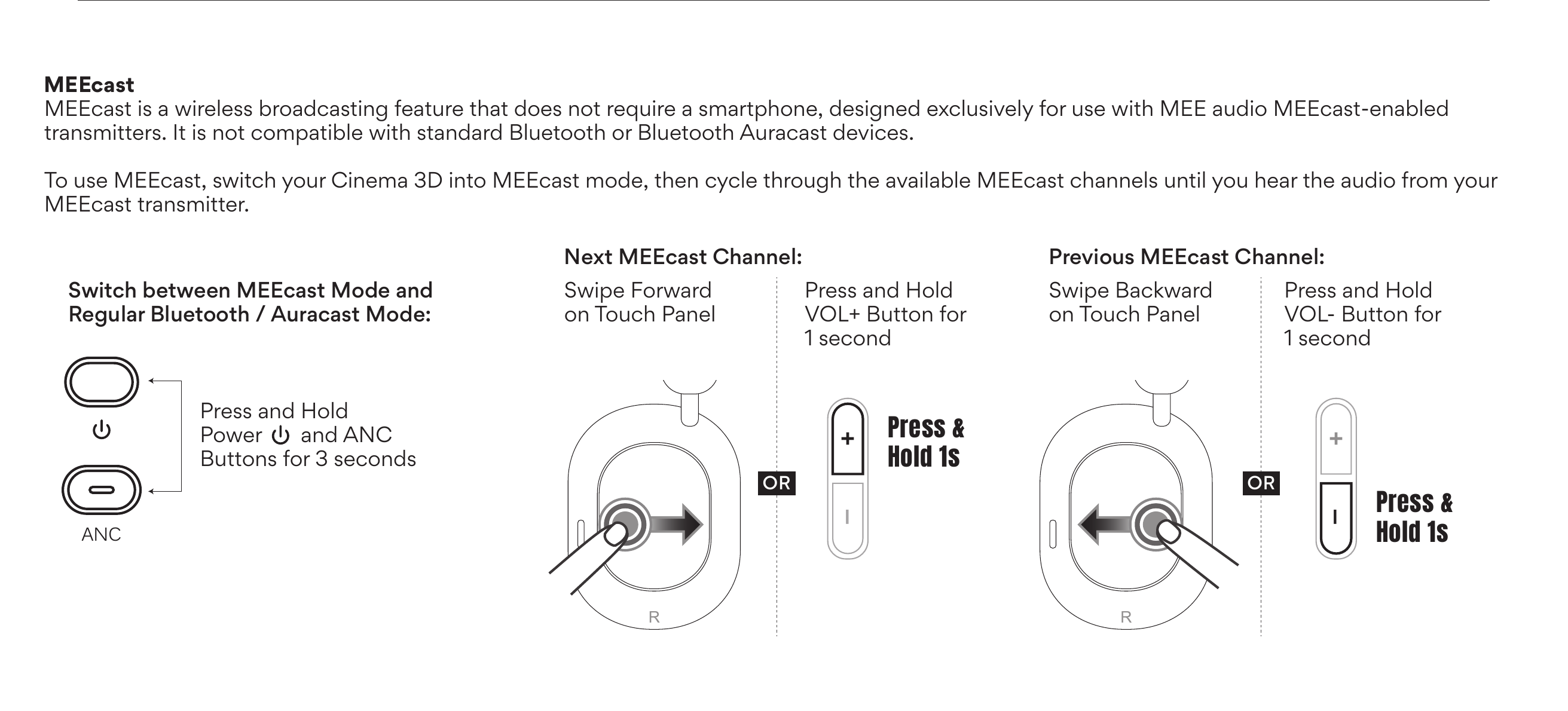

MEEcast

MEEcast is a wireless broadcasting feature that does not require a smartphone, designed exclusively for use with MEE audio MEEcast-enabled transmitters. It is not compatible with standard Bluetooth or Bluetooth Auracast devices.

To use MEEcast, switch your Cinema 3D into MEEcast mode, then cycle through the available MEEcast channels until you hear the audio from your MEEcast transmitter.

• Switch between MEEcast Mode and Regular Bluetooth / Auracast Mode: Press and hold Power and ANC Buttons for 3 seconds.
• Next MEEcast Channel: Swipe forward on Touch Panel, OR press and hold VOL+ Button for 1 second.
• Previous MEEcast Channel: Swipe backward on Touch Panel, OR press and hold VOL− Button for 1 second.

Note: Refer to the Controls Quick Reference table for a list of features/controls available with each connection option.

Troubleshooting

Most issues can be solved by resetting the Connect transmitter and Cinema 3D headphones and re-connecting them.

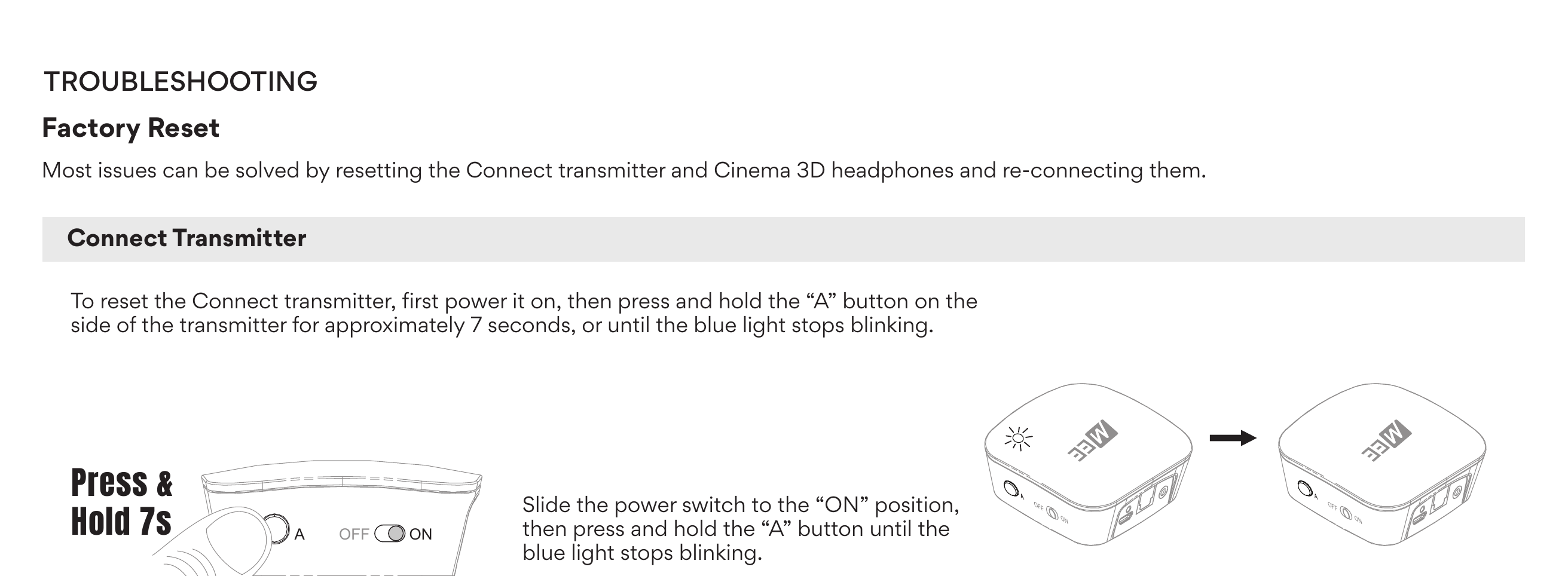

Factory Reset

Connect Transmitter

To reset the Connect transmitter, first power it on, then press and hold the "A" button on the side of the transmitter for approximately 7 seconds, or until the blue light stops blinking.

1. Slide the power switch to the "ON" position.
2. Press and hold the "A" button until the blue light stops blinking.

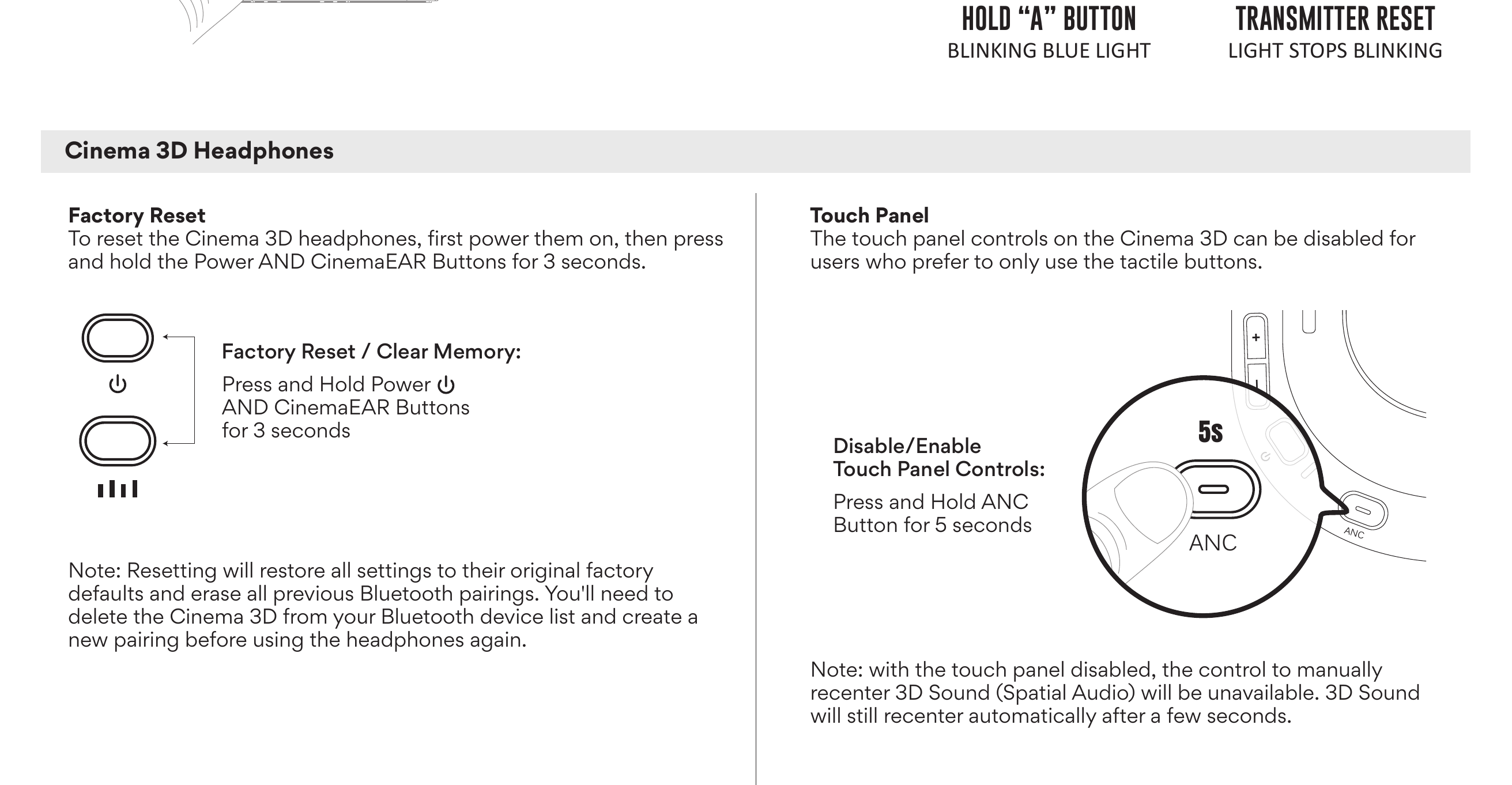

Cinema 3D Headphones

To reset the Cinema 3D headphones, first power them on, then press and hold the Power AND CinemaEAR Buttons for 3 seconds.

Note: Resetting will restore all settings to their original factory defaults and erase all previous Bluetooth pairings. You'll need to delete the Cinema 3D from your Bluetooth device list and create a new pairing before using the headphones again.

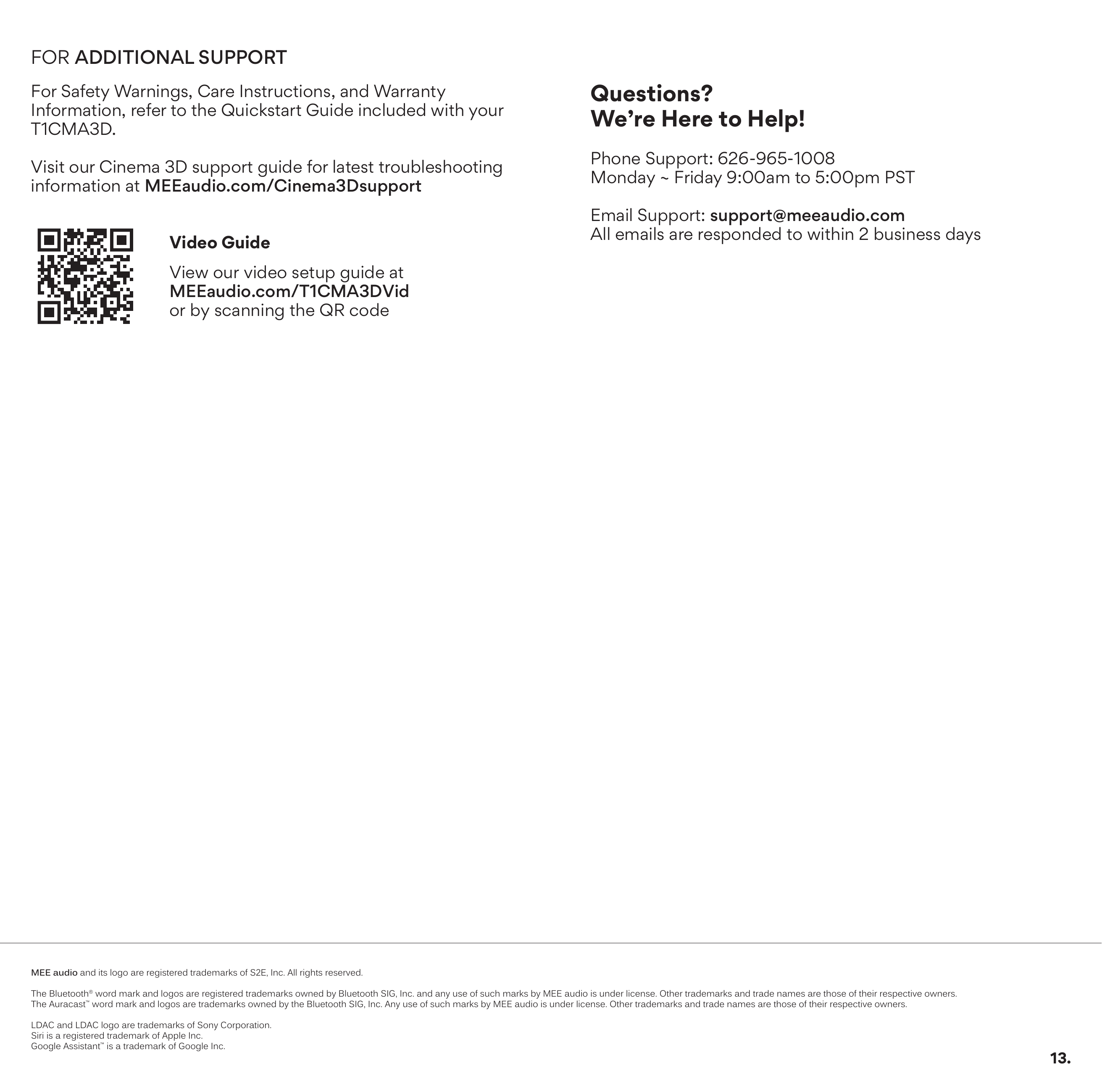

Additional Support

For Safety Warnings, Care Instructions, and Warranty Information, refer to the Quickstart Guide included with your T1CMA3D.

Visit our Cinema 3D support guide for the latest troubleshooting information at MEEaudio.com/Cinema3Dsupport.

Video Guide

View our video setup guide at MEEaudio.com/T1CMA3DVid or by scanning the QR code on the page above.

Contact Support

Phone Support: 626-965-1008
Monday – Friday, 9:00 am to 5:00 pm PST

Email Support: support@meeaudio.com
All emails are responded to within 2 business days.

MEE audio and its logo are registered trademarks of S2E, Inc. All rights reserved. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by MEE audio is under license. The Auracast™ word mark and logos are trademarks owned by the Bluetooth SIG, Inc. LDAC and LDAC logo are trademarks of Sony Corporation. Siri is a registered trademark of Apple Inc. Google Assistant™ is a trademark of Google Inc.

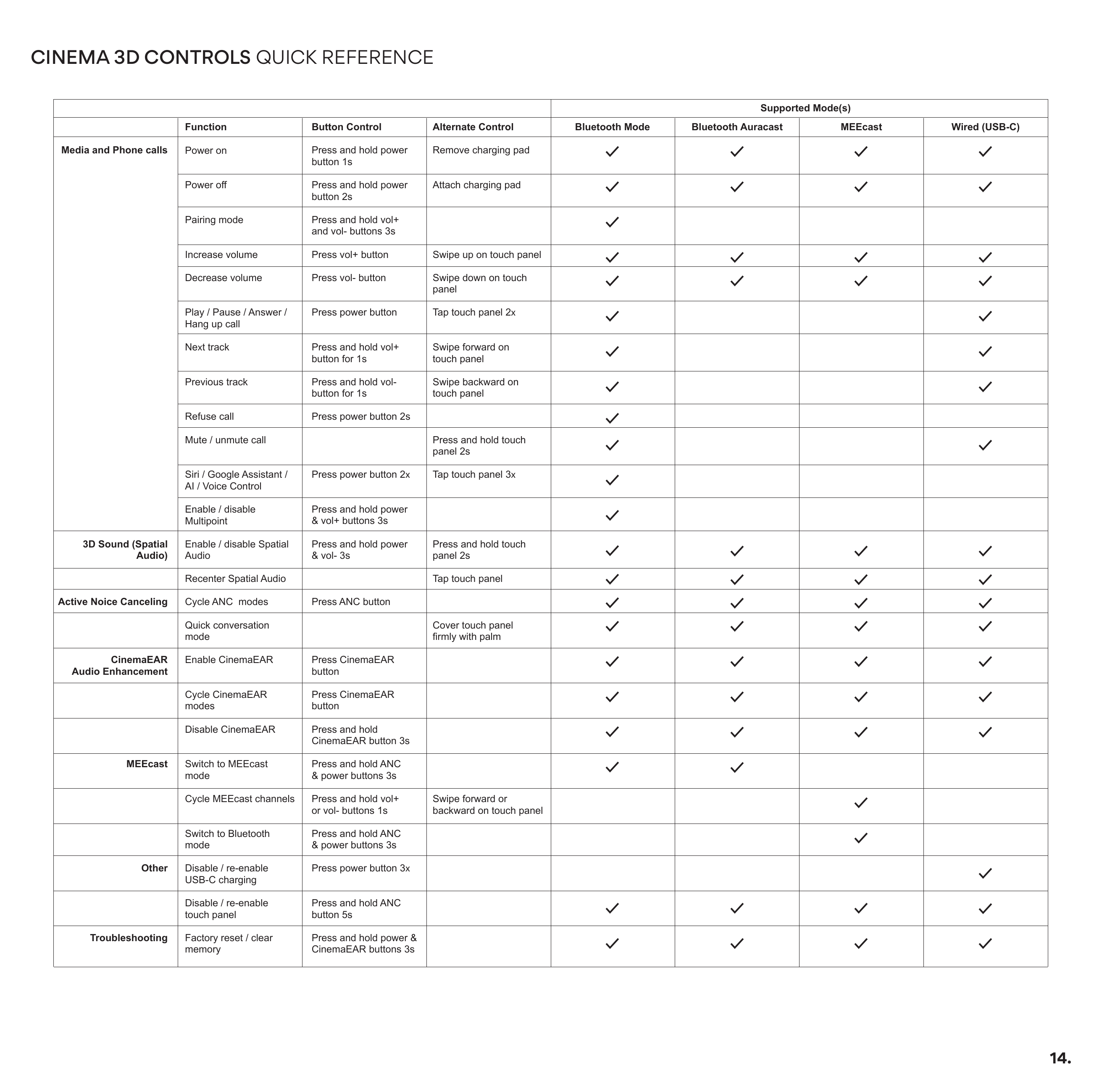

Cinema 3D Controls Quick Reference
